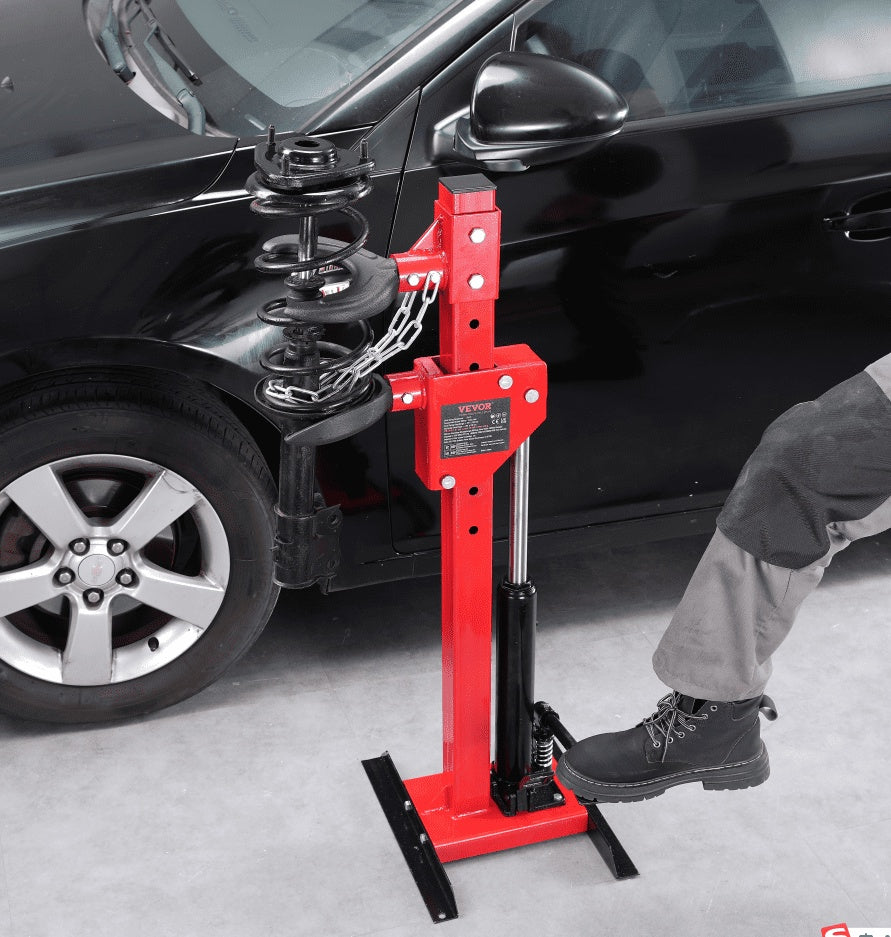

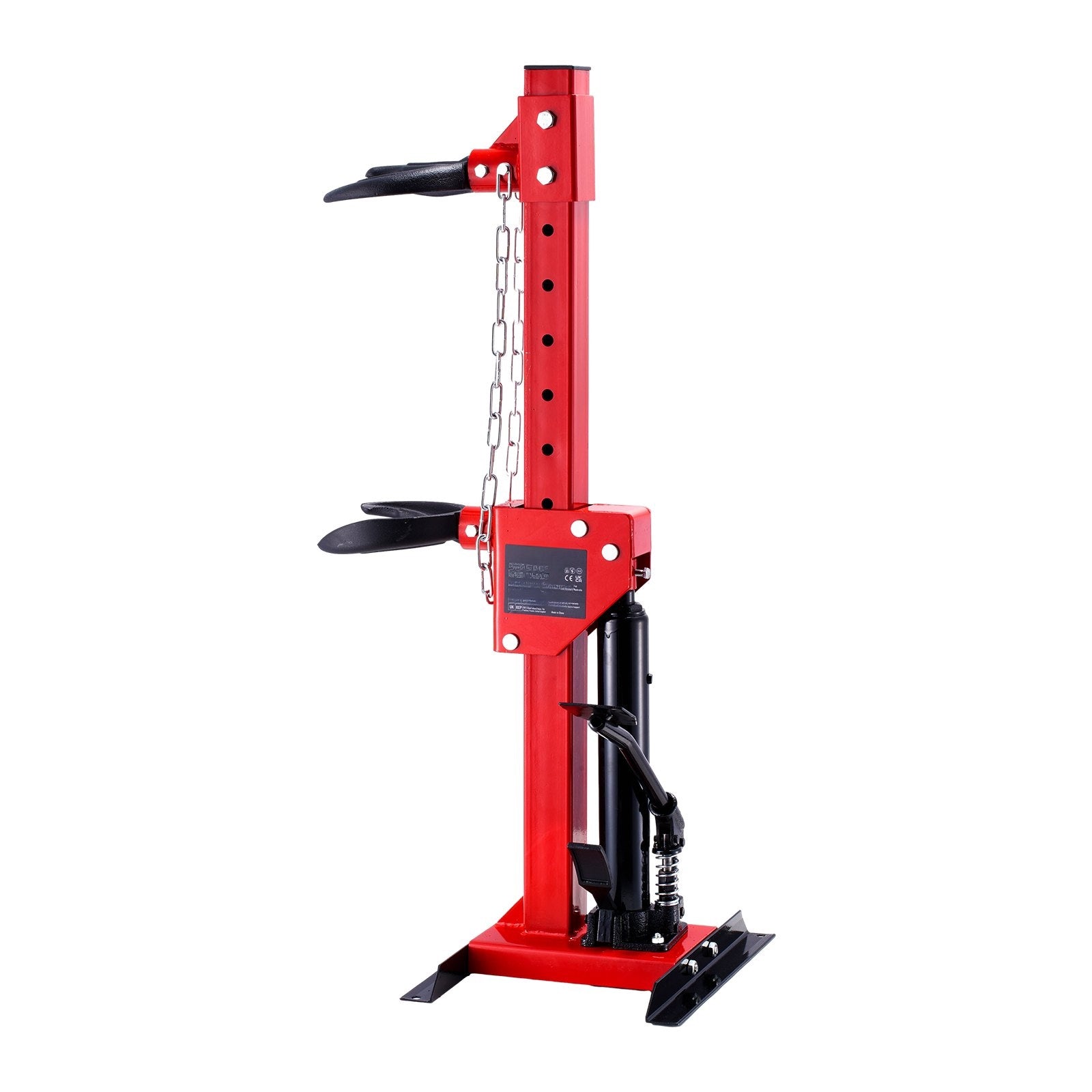

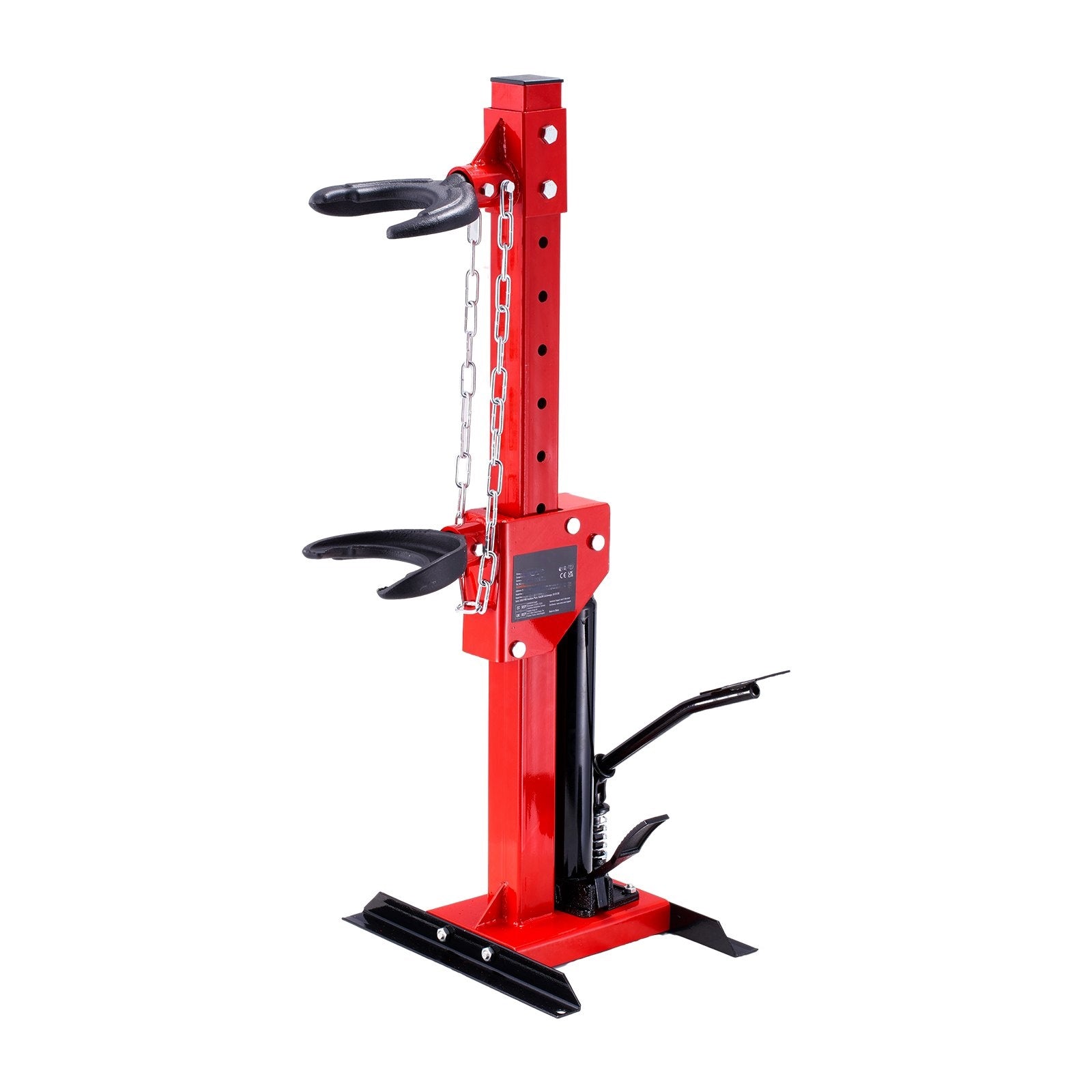

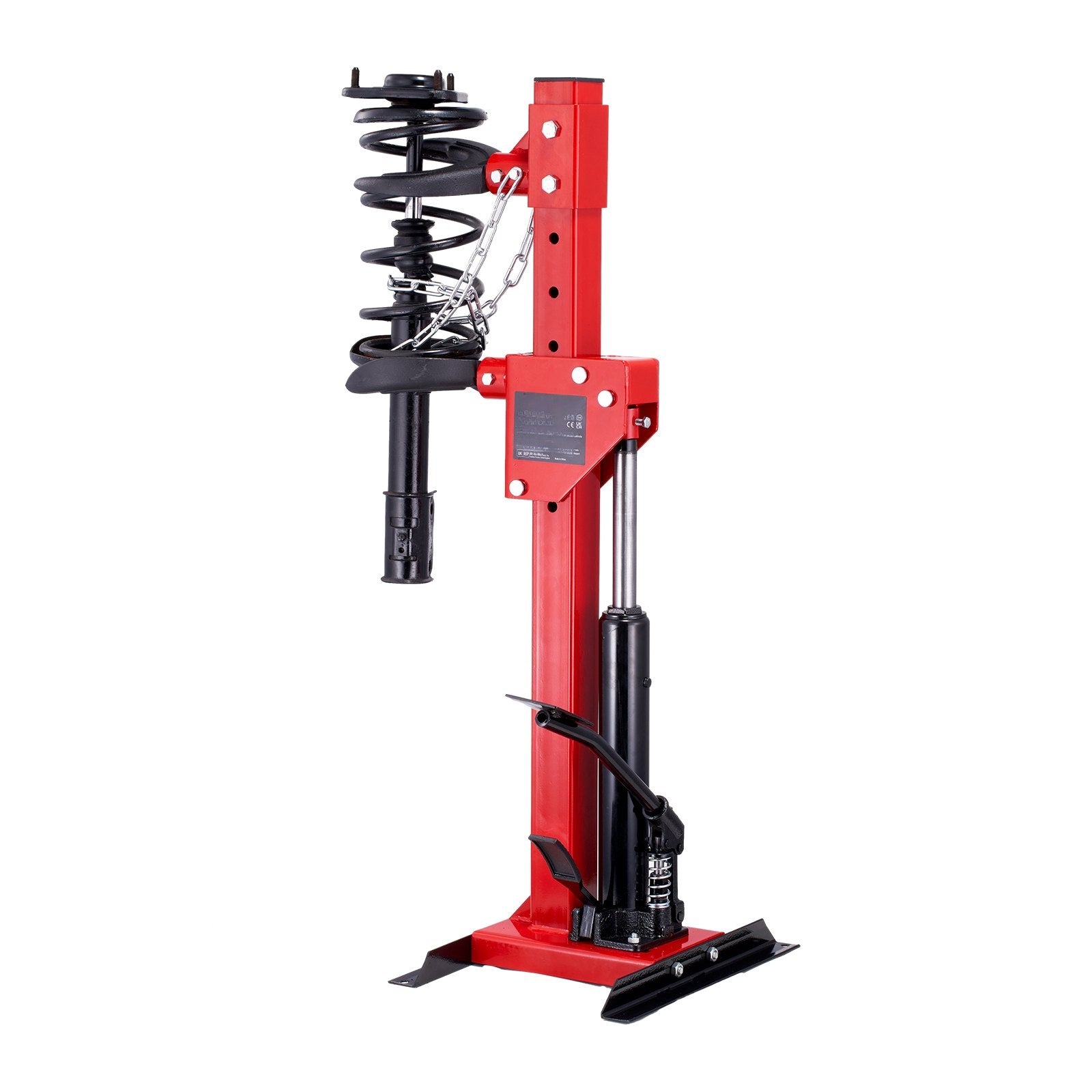

Hydraulic Strut Spring Compressor – 4.5 Ton, 1 Ton Force

Strut spring compressor tool delivers controlled, hands-free spring compression for faster strut removal and shock absorber maintenance. Built around a 4.5-ton hydraulic jack capacity with a 1-ton rated compression force, it supports common suspension springs on sedans, SUVs, off-road vehicles, and pickup trucks. Two adjustable spring clasps plus a stable, lockable column help reduce slipping, bounce, and mid-job repositioning—ideal for workshops and serious DIY garages.

• Delivers 4.5-ton hydraulic jack capacity with 1-ton/1000 kg rated compression force for controlled spring work

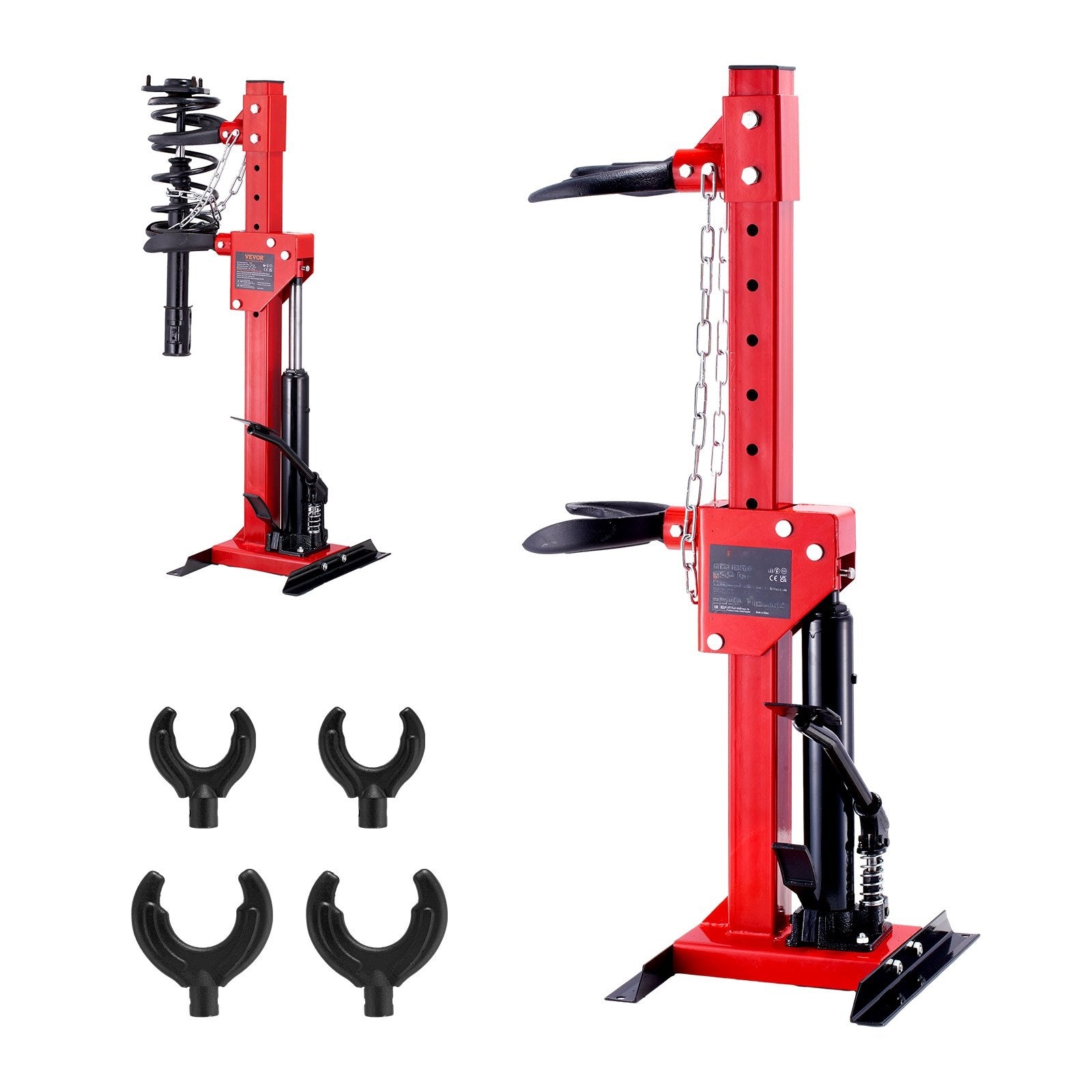

• Includes 2 spring clasps: small 4.3"–5.1" and large 5.5"–6.7" to match varied coil diameters


• Adjusts with 8 positioning holes and 12.6"/320 mm compression stroke to fit different spring heights


• Stabilizes with suspension hold and slow-release valve to reduce sudden drop during decompression


• Secures with 39.4" safety chain, locking mechanism, safety tongue, H-base, plus 2 anchor holes

Designed for repeatable, shop-style performance, this hydraulic coil spring compressor uses a leak-resistant pump and dampened hydraulic rod for smooth lift and controlled lowering. Reinforced steel column and ductile cast iron clasps handle high-tension springs while helping minimize wobble on the floor. Anchor it down, set the clasp height, and compress with confidence for strut service, spring disassembly, and suspension repairs. Grab yours today and keep spring jobs efficient and predictable.

• Hydraulic jack max capacity: 4.5 ton (4499.6 kg)


• Rated compression force: 1 ton (1000 kg)


• Compression stroke: 12.6 in (320 mm)


• Positioning holes on column: 8


• Small spring clasp range: 4.3–5.1 in


• Large spring clasp range: 5.5–6.7 in


• Safety chain length: 39.4 in


• Product size: 18.9 x 15.8 x 40.9 in (480 x 400 x 1040 mm)


• Net weight: 57.3 lb (26 kg)


• Materials: Q235 steel column; ductile cast iron clasps
