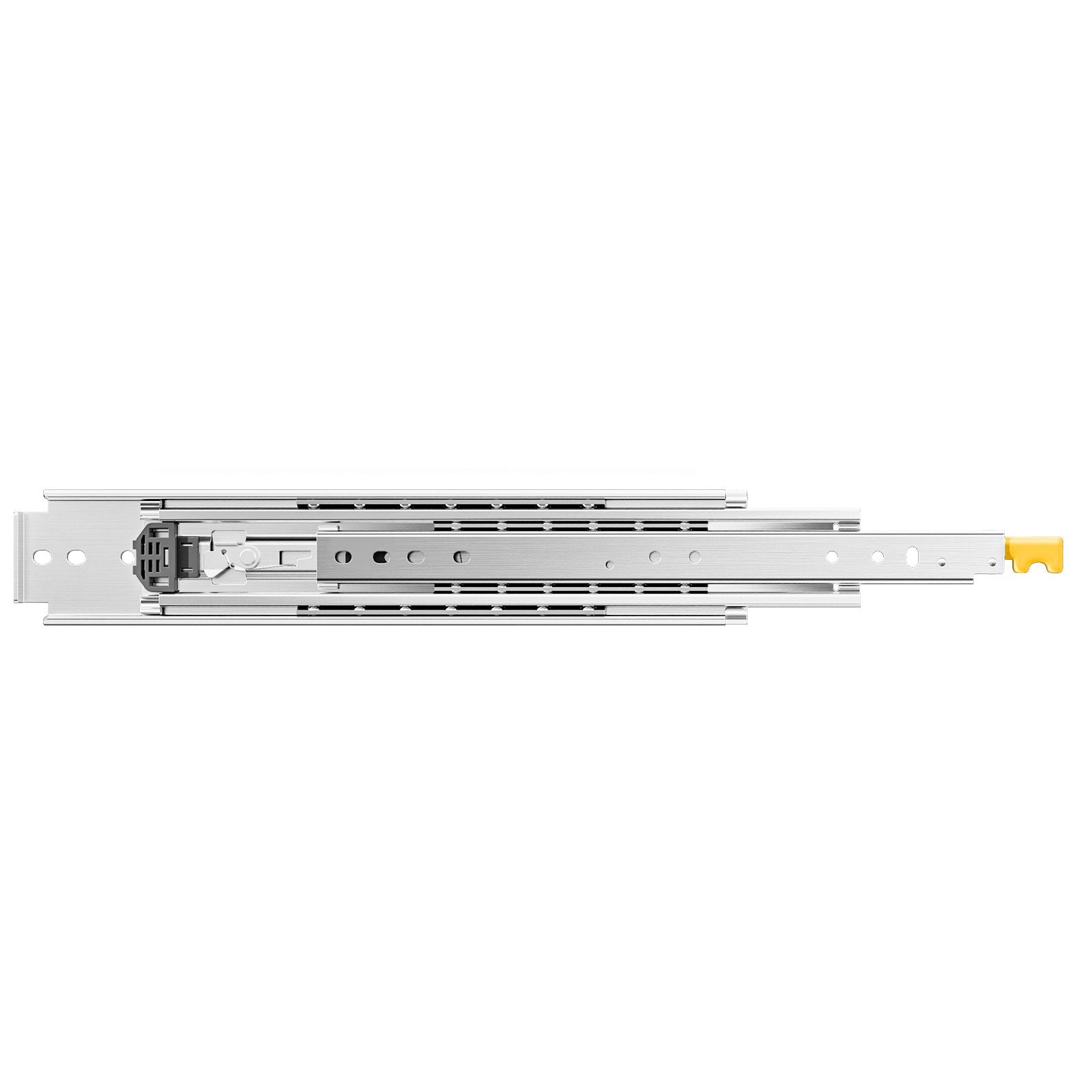

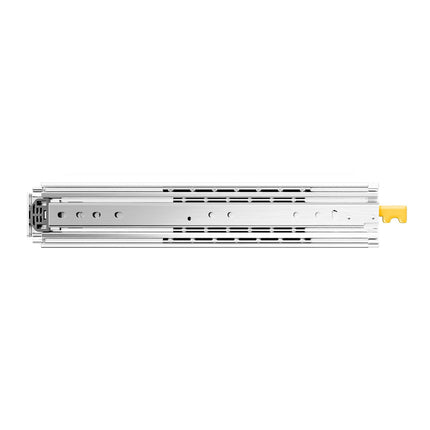

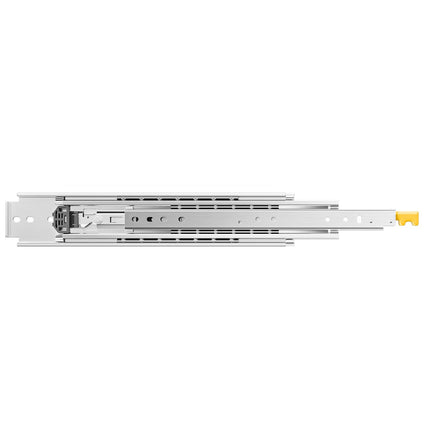

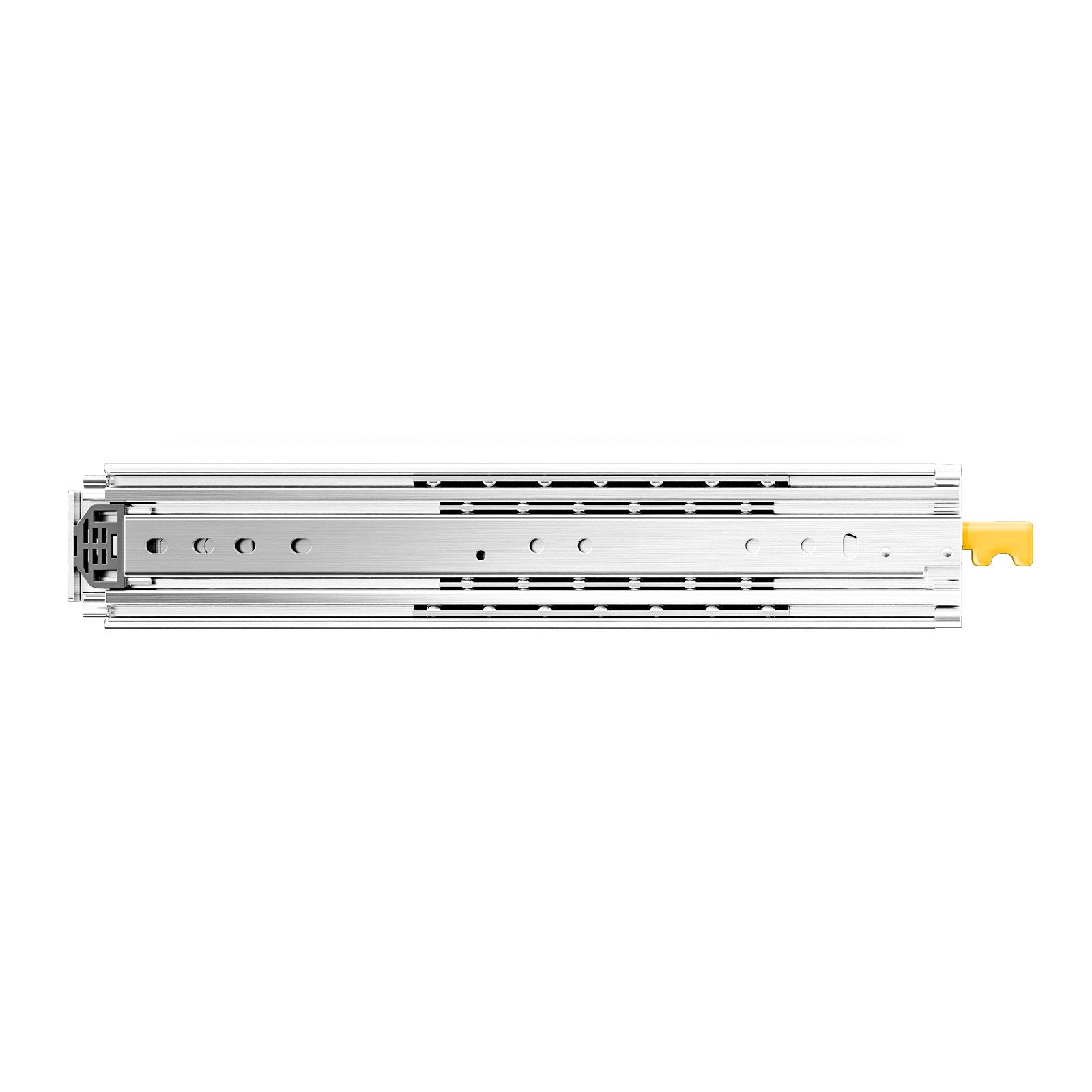

Locking Drawer Slides, 24 Inch, 500 lb Full Extension

Locking drawer slides deliver secure, full-extension access while keeping heavy drawers from shifting during travel or vibration. This side-mount, ball-bearing slide set is built for tool drawers, cabinets, shelving, RV and truck storage where stability matters. A press-to-lock mechanism helps hold the drawer closed, while smooth 3-fold telescoping action makes it easy to reach the back of deep compartments. Measure your drawer depth before selecting size for proper fit and travel.

• Delivers up to 500 lb load rating for heavy drawers, equipment, and storage builds


• Locks with a simple press to help prevent slide-out on bumpy roads or moving vehicles


• Glides smoothly with double-row ball bearings and nylon cushioning for quieter operation


• Extends fully with a 3-fold telescoping design to access the entire drawer

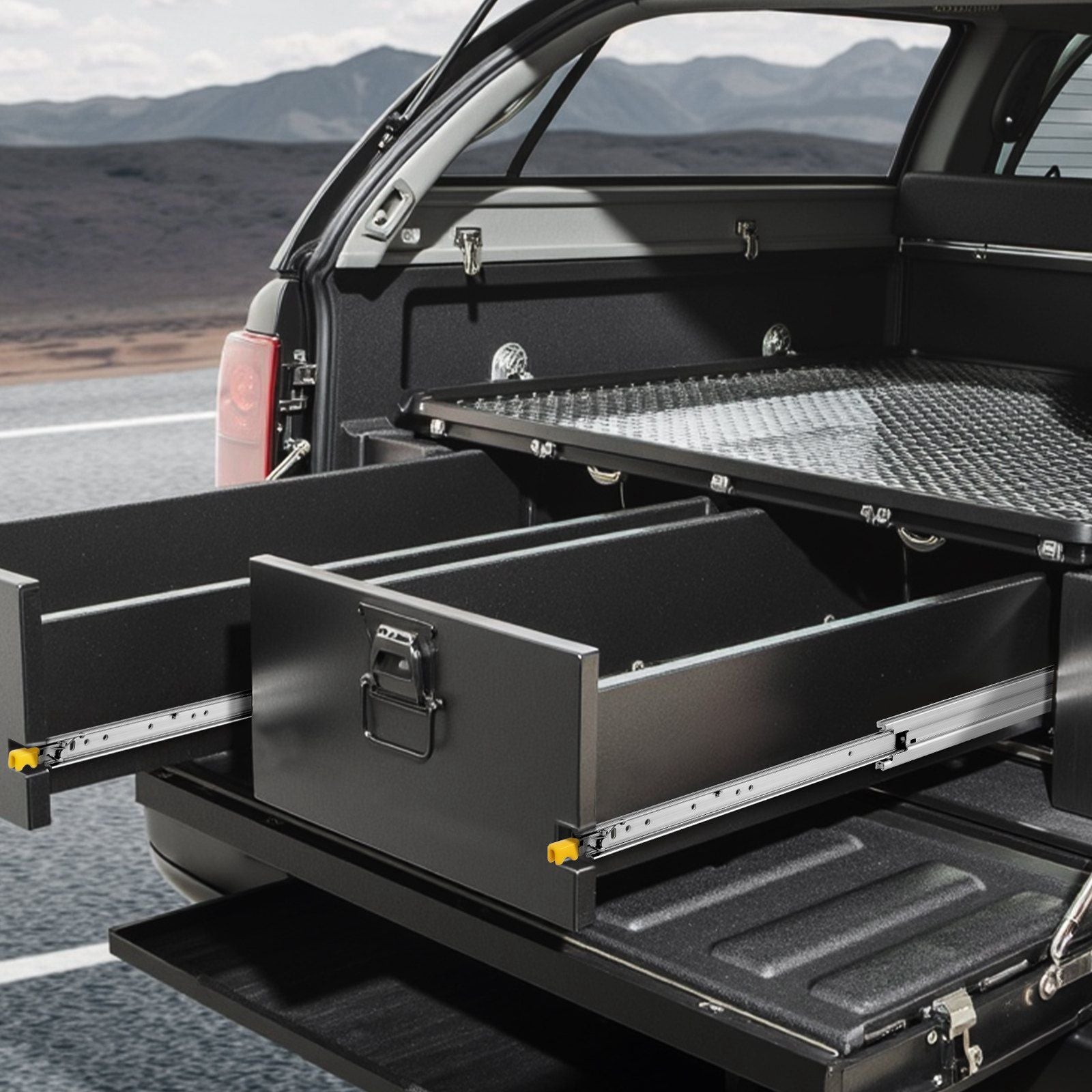

• Fits side-mount installations for cabinets, industrial drawers, RVs, trucks, and vending machines

Built from thick, high-hardness steel with a galvanized finish, these full extension drawer slides are designed for demanding daily use where rust resistance and consistent travel matter. Use them for workshop tool storage, service vehicle builds, or any cabinet drawer that needs a positive lock. For best results, measure the drawer and cabinet depth (excluding face frame/boards) and choose a slide length that matches the drawer depth. Grab yours today and upgrade your drawer build with secure, smooth, lockable travel.

• Type: Side-mount, full extension (3-fold) locking drawer slides

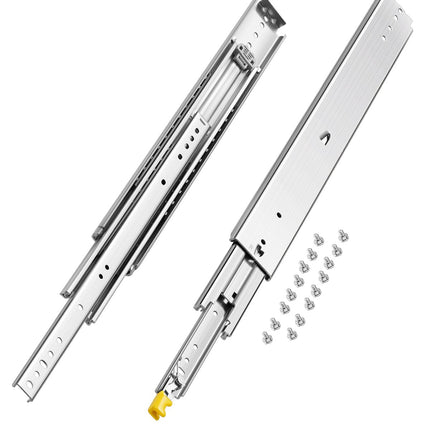

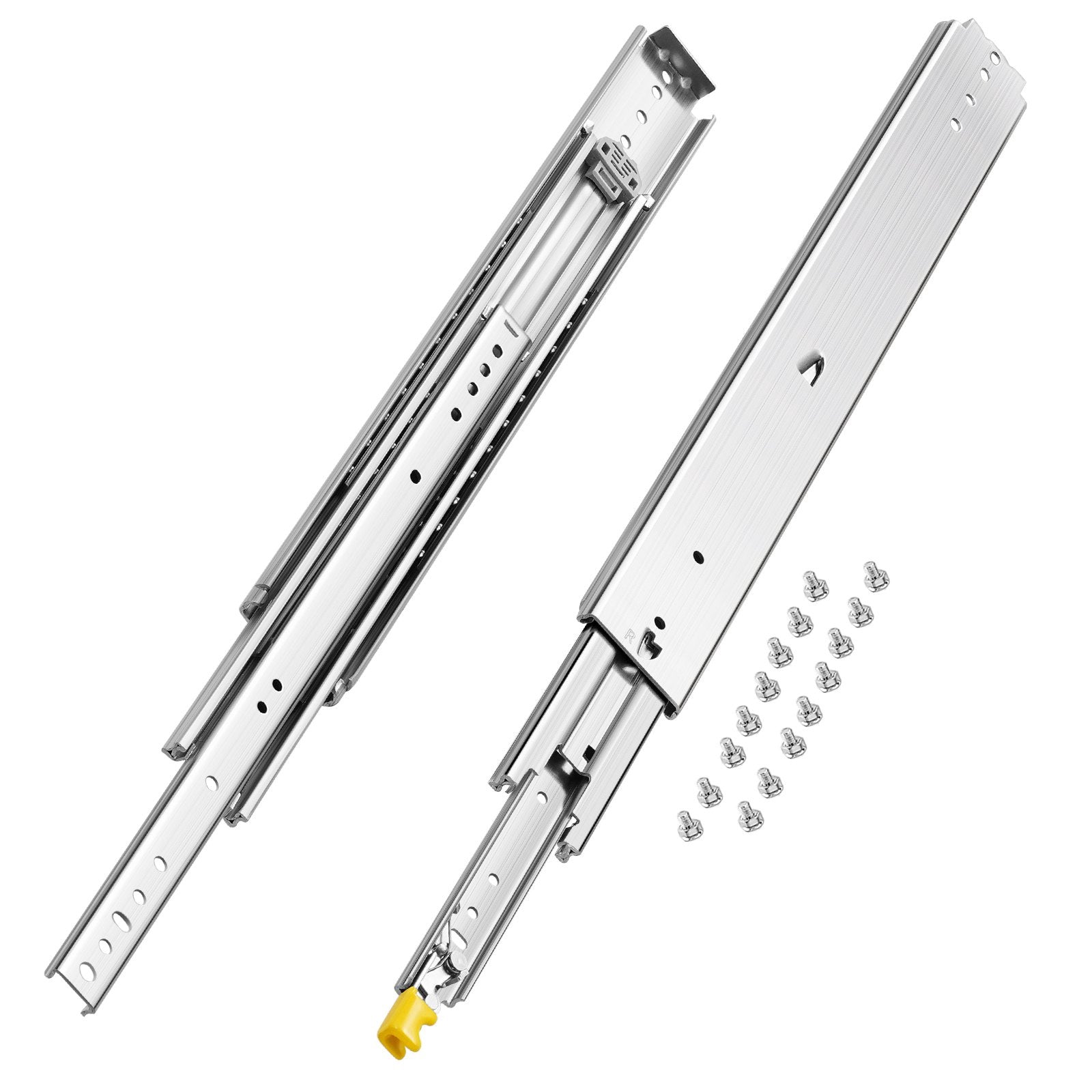

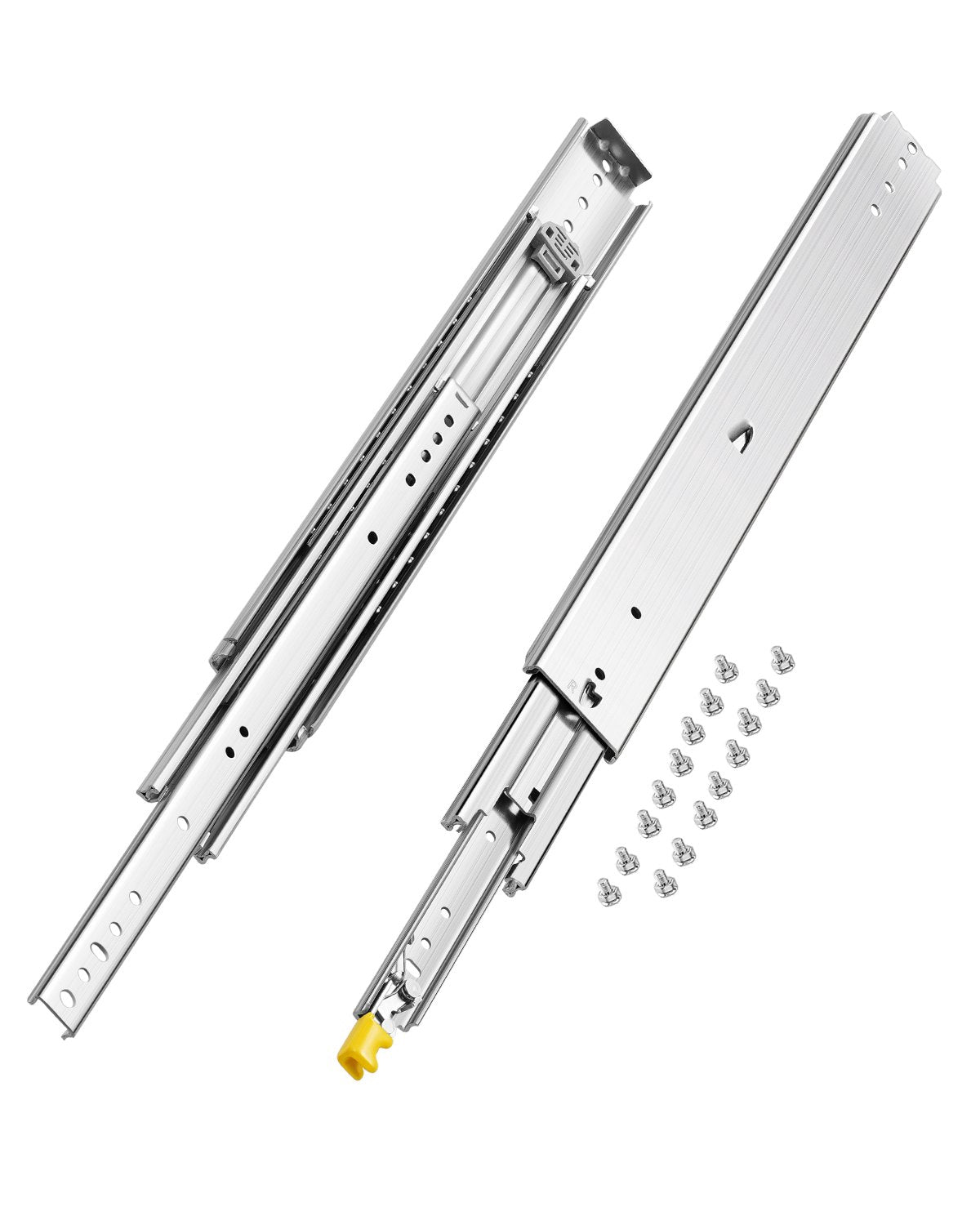

• Set includes: 1 pair (2 slides)


• Slide length: 24 in / 610 mm


• Recommended drawer length: 24.5 in / 622 mm


• Extension length: 24 in / 610 mm


• Load capacity: Up to 500 lb / 226.8 kg


• Load capacity (fully extended): 376 lb / 170.55 kg


• Material: High-hardness steel, 0.77 in / 19.5 mm thickness


• Finish: Galvanized


• Dimensions (without lock): 24 x 3 x 0.77 in / 610 x 76 x 19.5 mm


• Dimensions (with lock): 25 x 3 x 0.77 in / 642 x 76 x 19.5 mm


• Net weight: 13.23 lb / 6 kg
