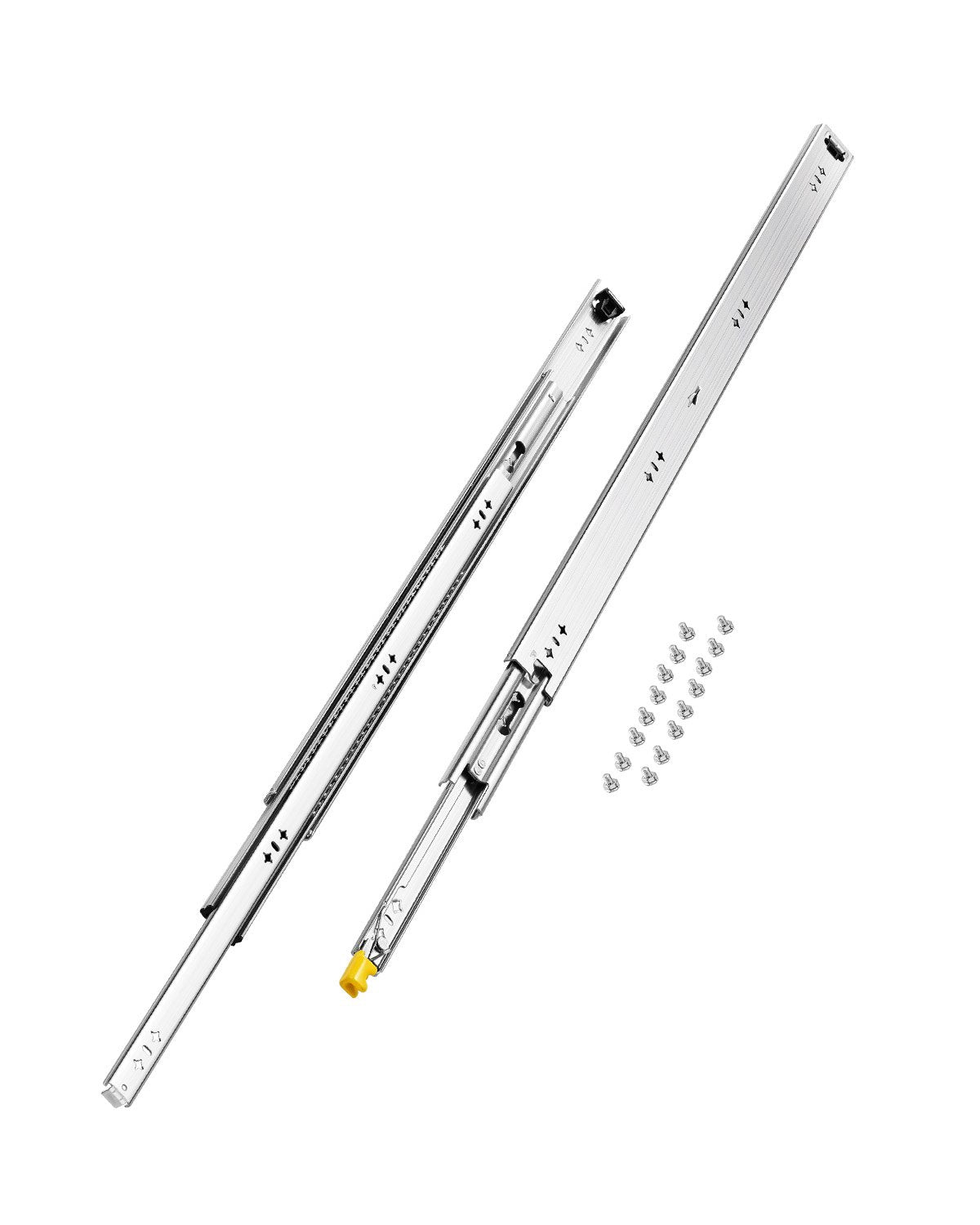

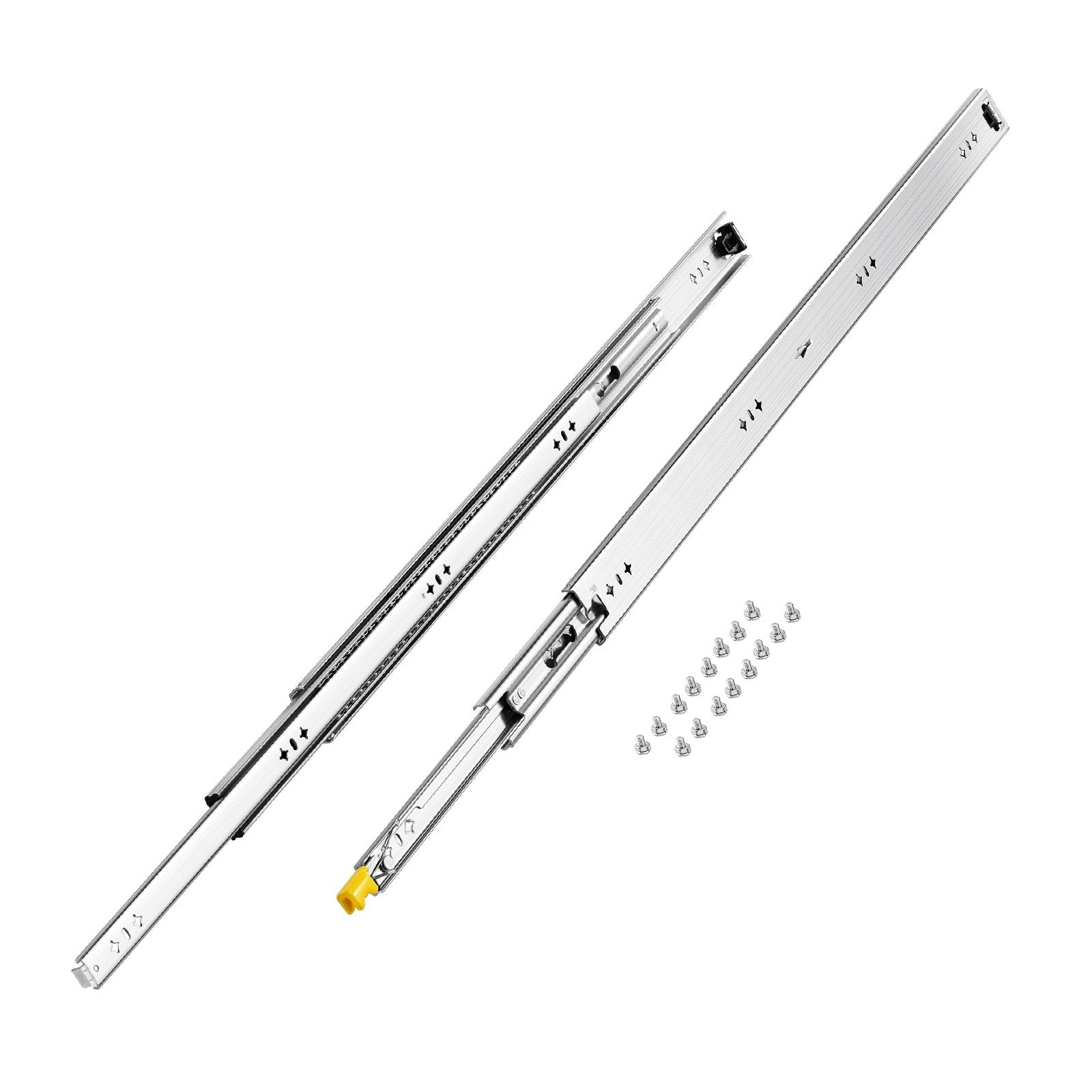

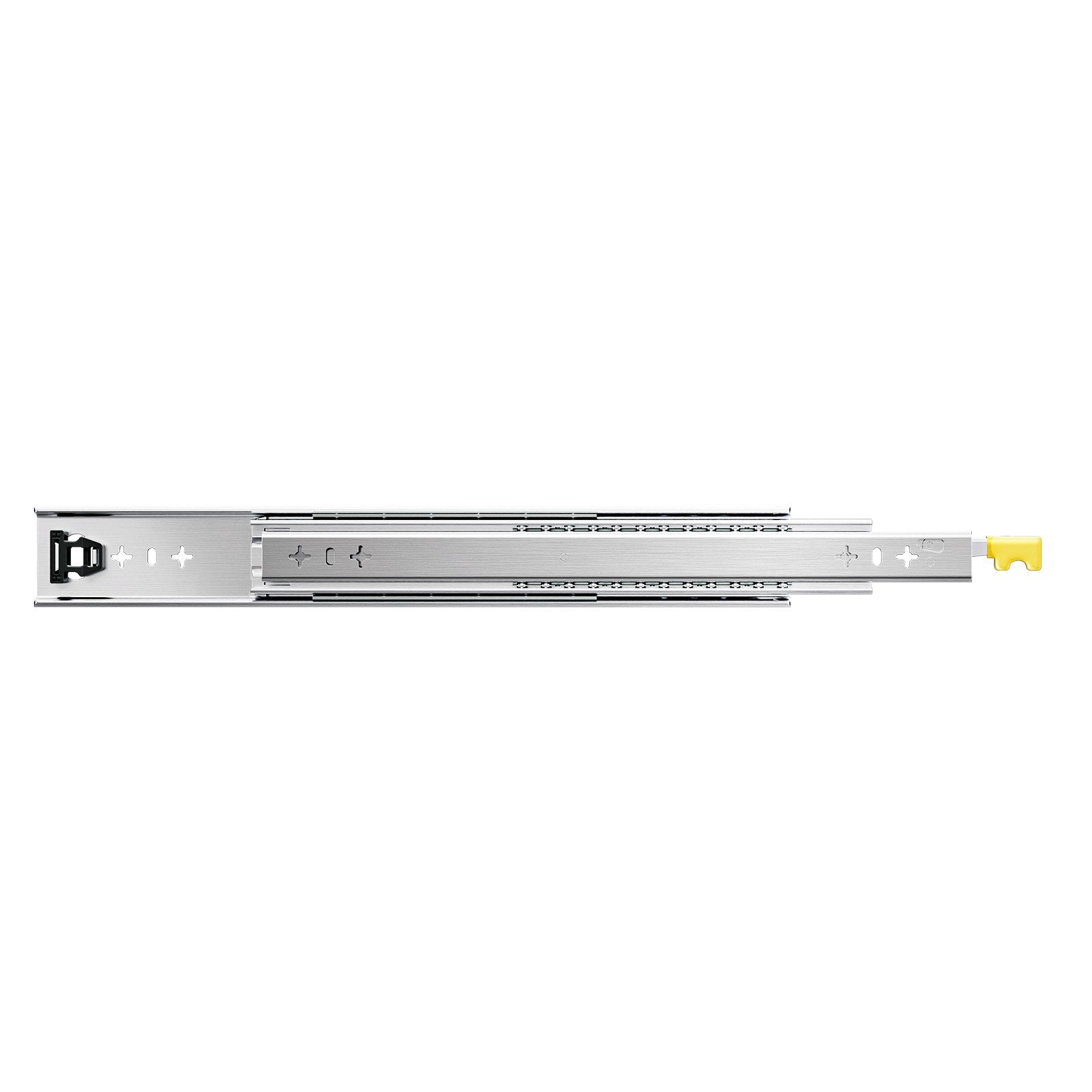

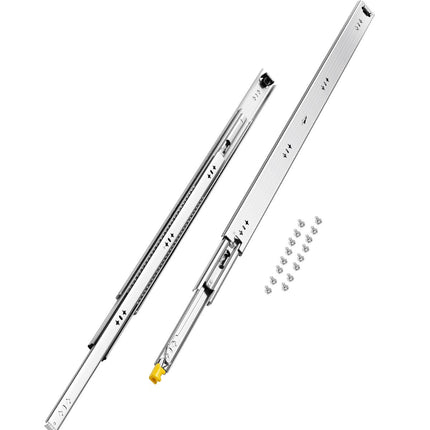

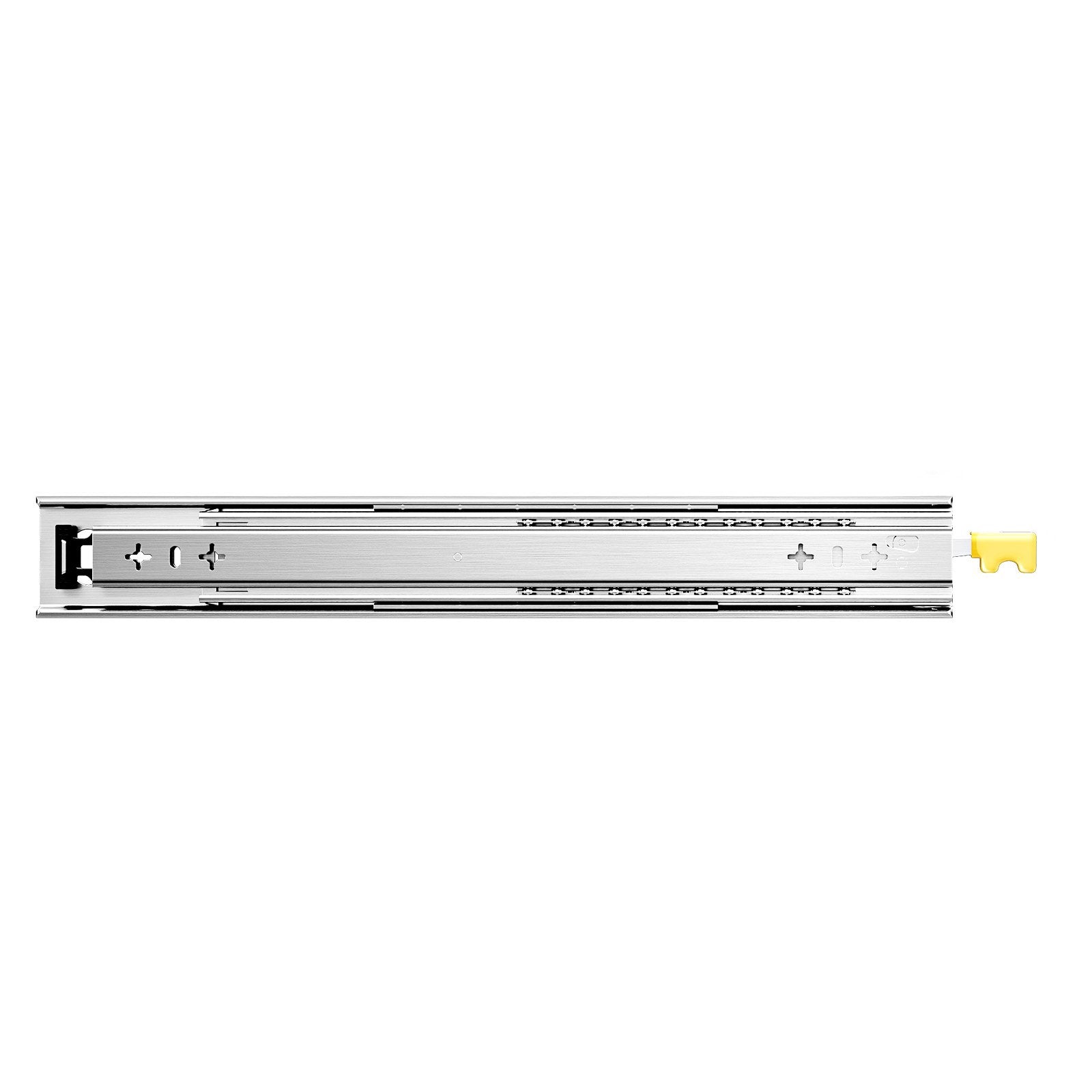

Locking Drawer Slides, Full Extension, 36 in, 250 lb

Locking drawer slides deliver secure, full-extension access for heavy drawers in cabinets, workbenches, RVs, and utility storage. Built from thick, high-hardness steel with a galvanized finish, they’re designed to handle demanding loads while staying smooth and stable. The side-mount, ball-bearing design adds controlled movement, and the lock keeps drawers from drifting open on bumpy roads or in busy shop environments.

• Delivers full-extension reach with a 3-fold telescoping design for easy access to the entire drawer


• Locks securely with a press-to-lock mechanism to keep drawers closed during movement and vibration


• Glides smoothly using double-row ball bearings and nylon cushioning for quieter open/close action


• Supports heavy-duty storage with steel construction and a galvanized finish for rust and wear resistance

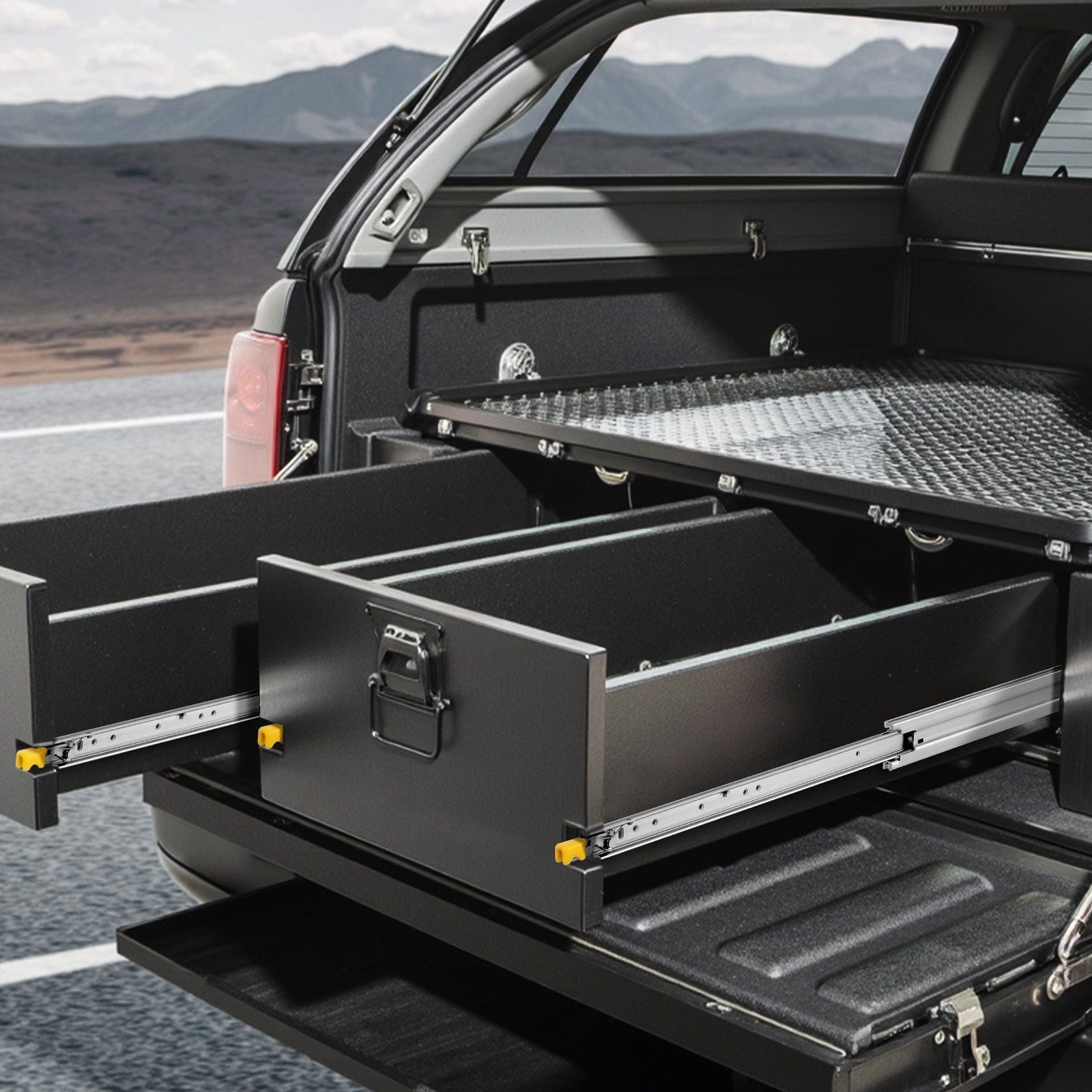

• Fits side-mount installations in cabinets, shelving, industrial drawers, trucks, RVs, and vending machines

Upgrade your build with drawer slide rails made for load-bearing, high-use applications where stability matters. Measure drawer and cabinet depth (excluding face frame) before choosing a length; select a slide length that matches your usable drawer depth to ensure proper fit and extension. Ideal for tool drawers, gear pull-outs, and mobile storage where a locking latch prevents unwanted opening. Grab yours today and build with confidence.

• Type: Side-mount, full extension (3-fold) locking drawer slides, ball bearing


• Included: 1 pair (2 rails) locking drawer slides


• Load capacity: 250 lbs (113.4 kg); fully extended load capacity: 135 lbs (61.23 kg)


• Material: High-hardness steel; thickness 0.77 in (19.5 mm); finish: galvanized


• Slide size (with lock): 36.61 x 2.09 x 0.77 in (930 x 53 x 19.5 mm)


• Slide size (without lock): 35.43 x 2.09 x 0.77 in (900 x 53 x 19.5 mm)


• Suitable drawer length: 36.5 in (927 mm); extension length: 35 in (900 mm)


• Net weight: 10.8 lbs (4.9 kg)
