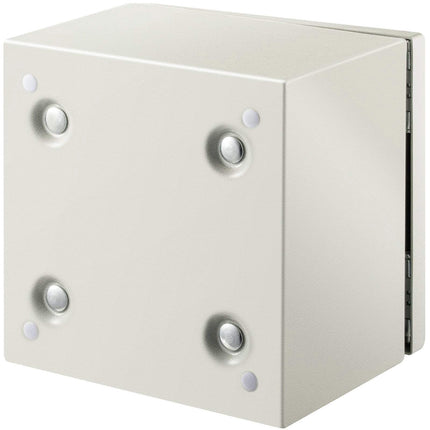

NEMA 4X Steel Electrical Enclosure 20x20x15 cm, IP66

NEMA 4X steel electrical enclosure keeps sensitive wiring and controls protected with an IP66-rated seal for indoor or outdoor installations. Built from 1.5 mm cold-rolled carbon steel with an epoxy polyester powder-coated finish, this lockable hinged electrical junction box helps block water, dust, and grime in demanding sites. A detachable galvanized mounting plate speeds component layout, while smooth cutouts and pre-installed grounding screws support cleaner, safer cable routing.

• Delivers IP66 sealing to help resist water and dust in workshops, outdoor panels, and utility areas


• Protects with 1.5 mm carbon steel construction and powder-coated finish for wear and corrosion resistance

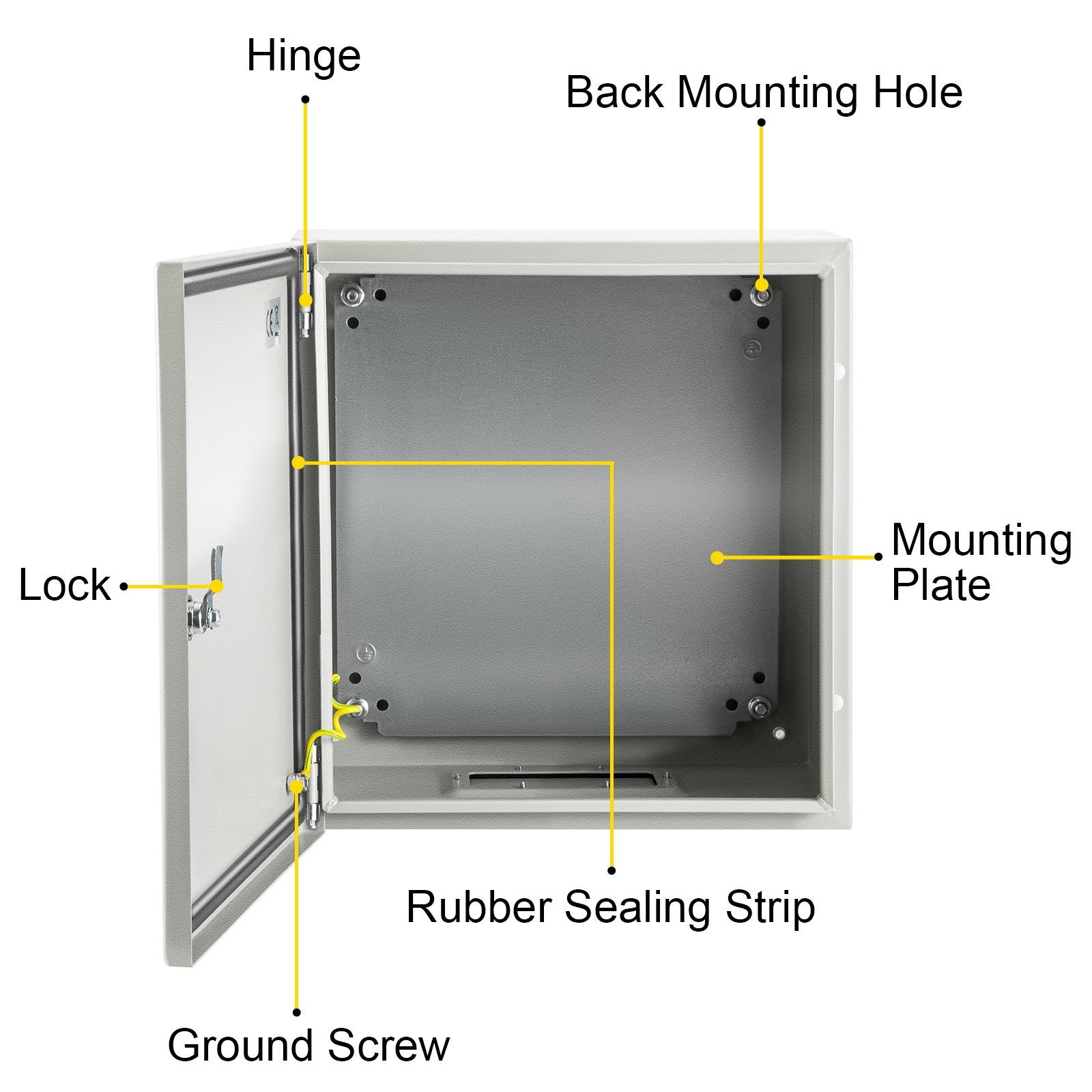

• Secures with reinforced hinge and lockable door to reduce tampering and accidental access

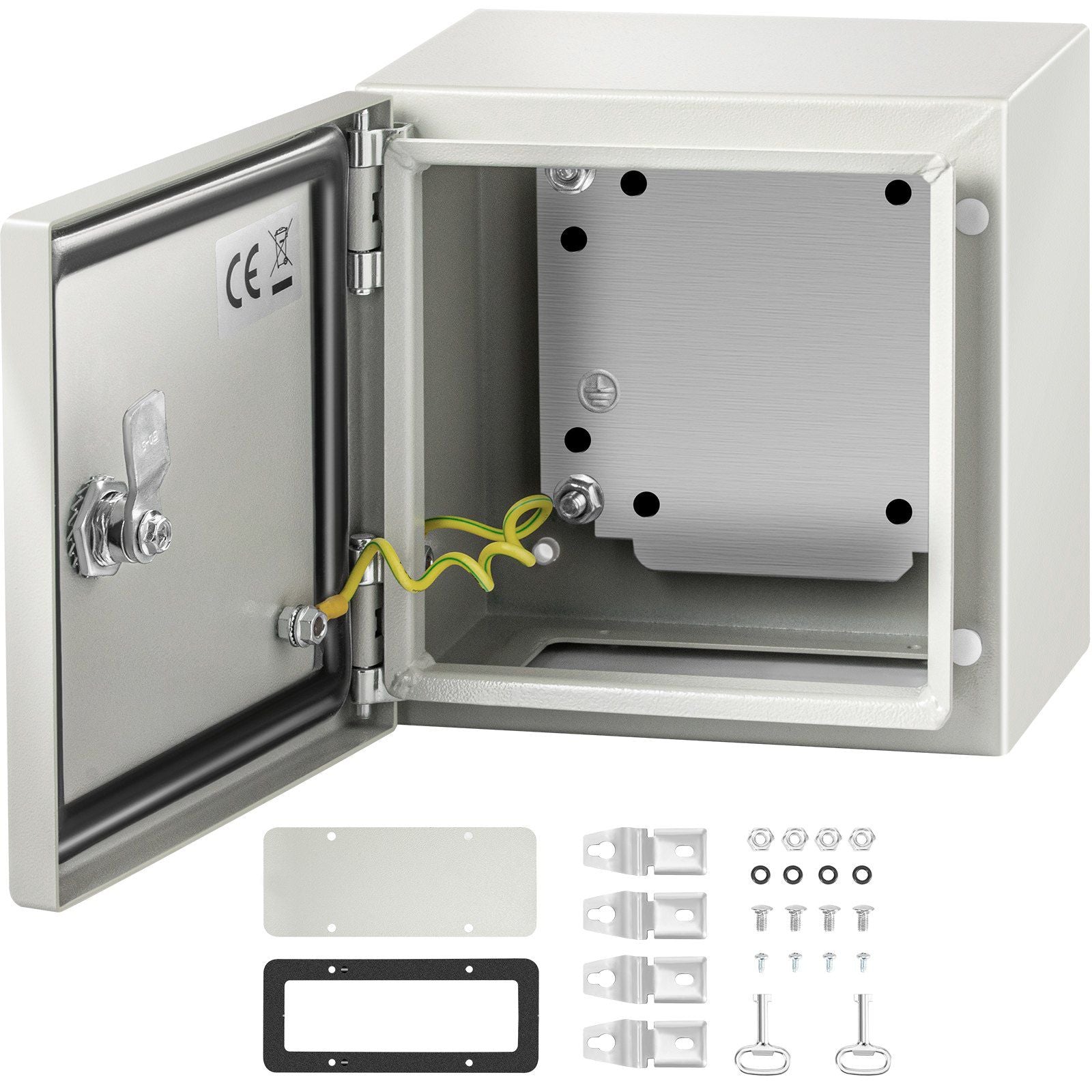

• Includes detachable 2 mm galvanized mounting backplate for fast component installation and servicing


• Supports cleaner wiring with bottom entry design, smooth edges, and pre-installed grounding screws

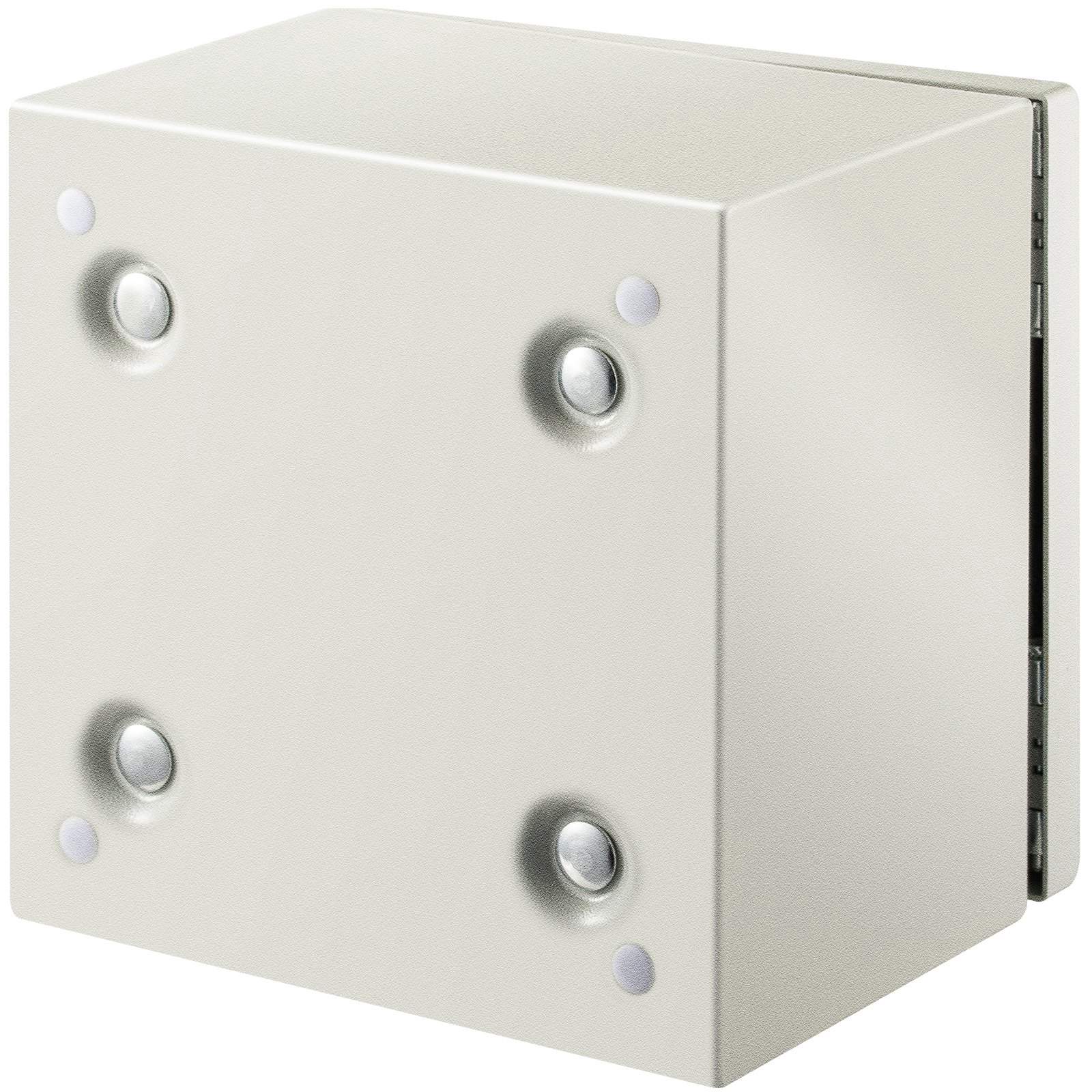

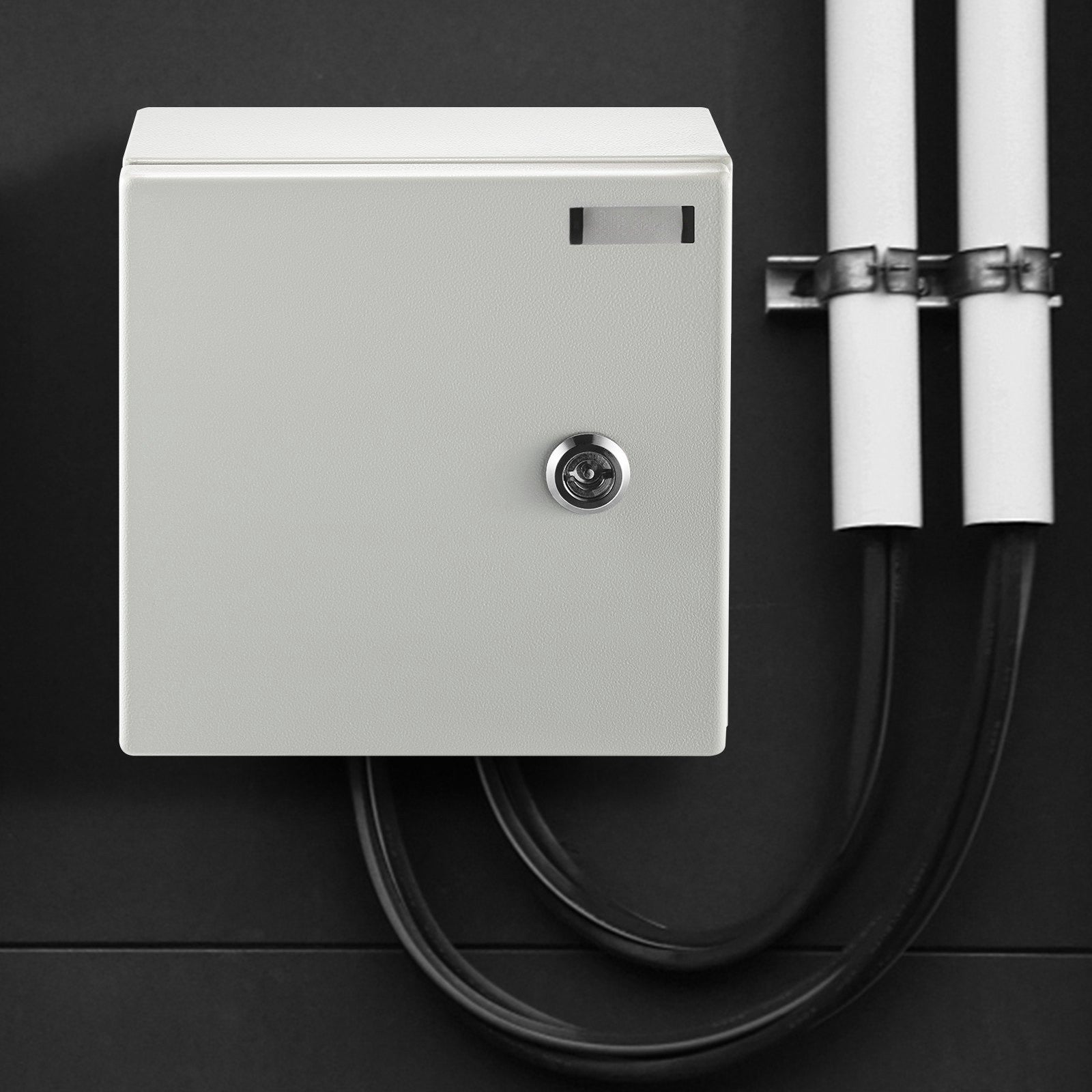

Designed for quick, reliable installs, this weather-resistant control box is sized for compact builds without sacrificing protection. Use it as an outdoor electrical box, indoor junction enclosure, or small control cabinet for lighting, automation, pumps, HVAC accessories, or security components. Four rear wall-mount holes help anchor the enclosure firmly, while the hinged cover keeps access simple during maintenance. Choose the size that fits your layout and grab yours today to keep connections organized and better shielded from the elements.

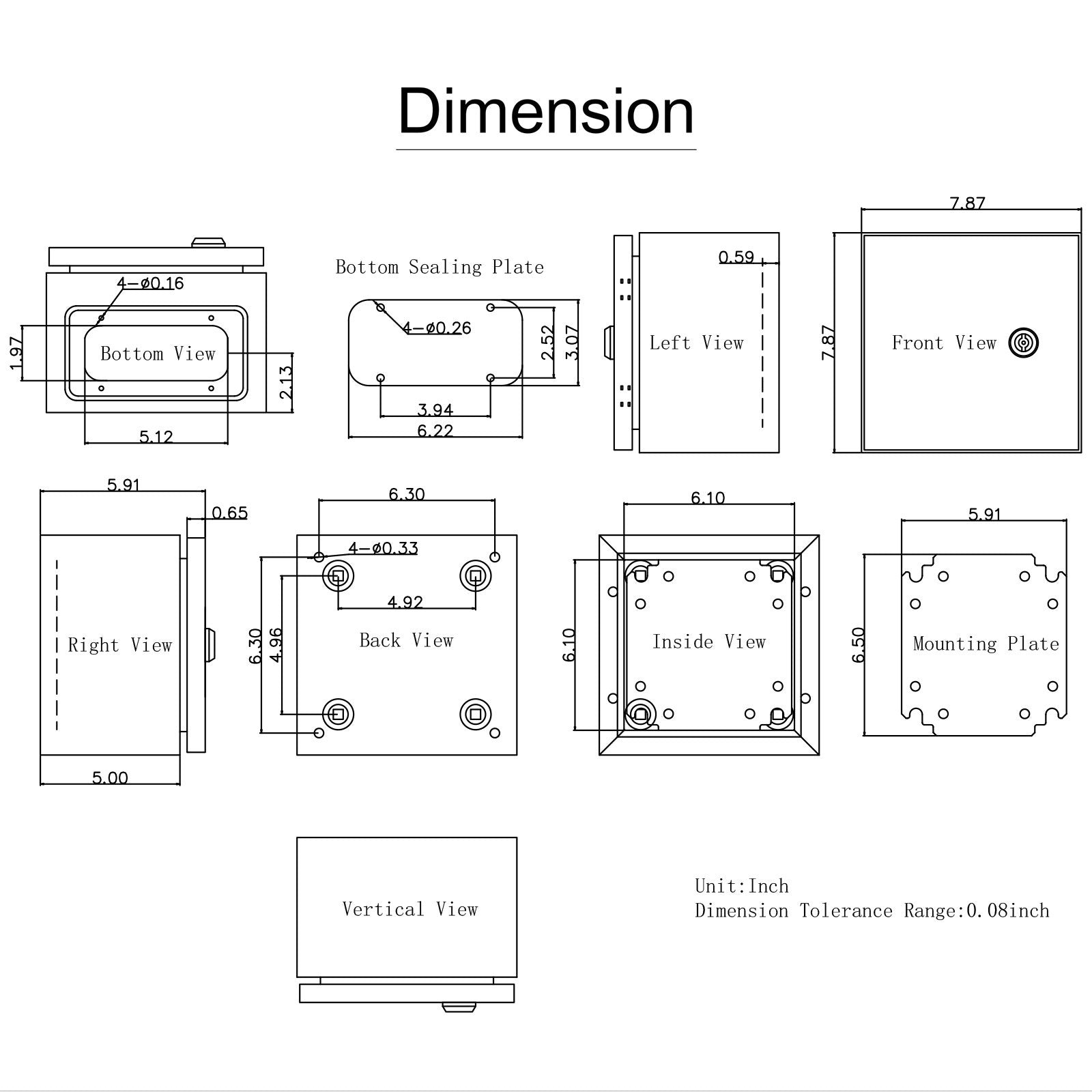

• Outer dimensions (H x W x D): 8" x 8" x 6" (20 x 20 x 15 cm)


• Inner dimensions (H x W x D): 7.8" x 7.8" x 4.6" (19.7 x 19.7 x 11.65 cm)


• Material: 0.059" (1.5 mm) cold-rolled carbon steel


• Mounting plate: 0.079" (2 mm) detachable galvanized backplate; 6" x 6" (15 x 15 cm)


• Ingress protection: Designed to meet IP66; NEMA 1, 2, 4, 4X, 12


• Connection type: Hinged; Feature: Lockable


• Finish: Epoxy polyester powder coating


• Color: Gray White (RAL7035)


• Certifications: CE, RoHS


• Product weight: 7.72 lb (3.5 kg)
