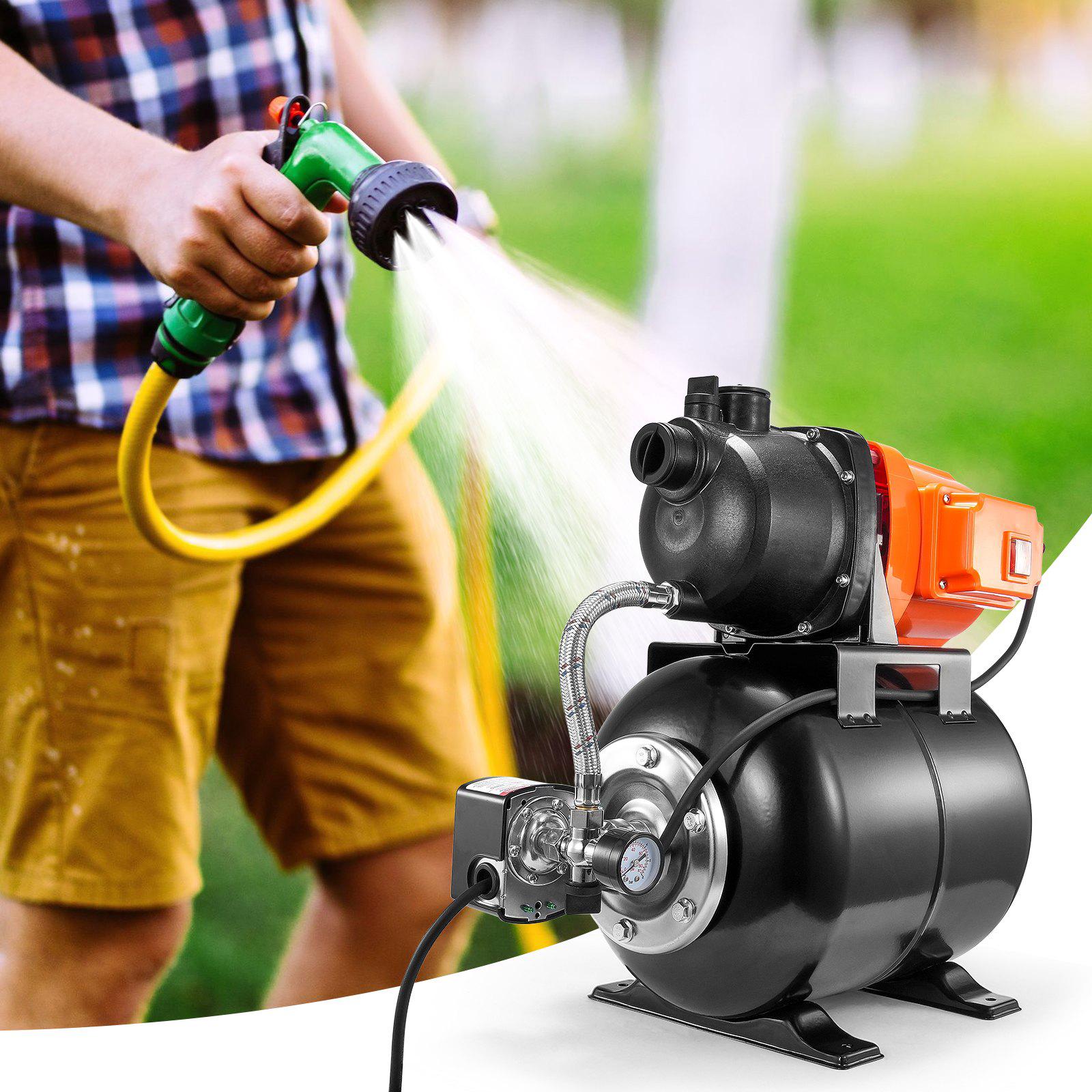

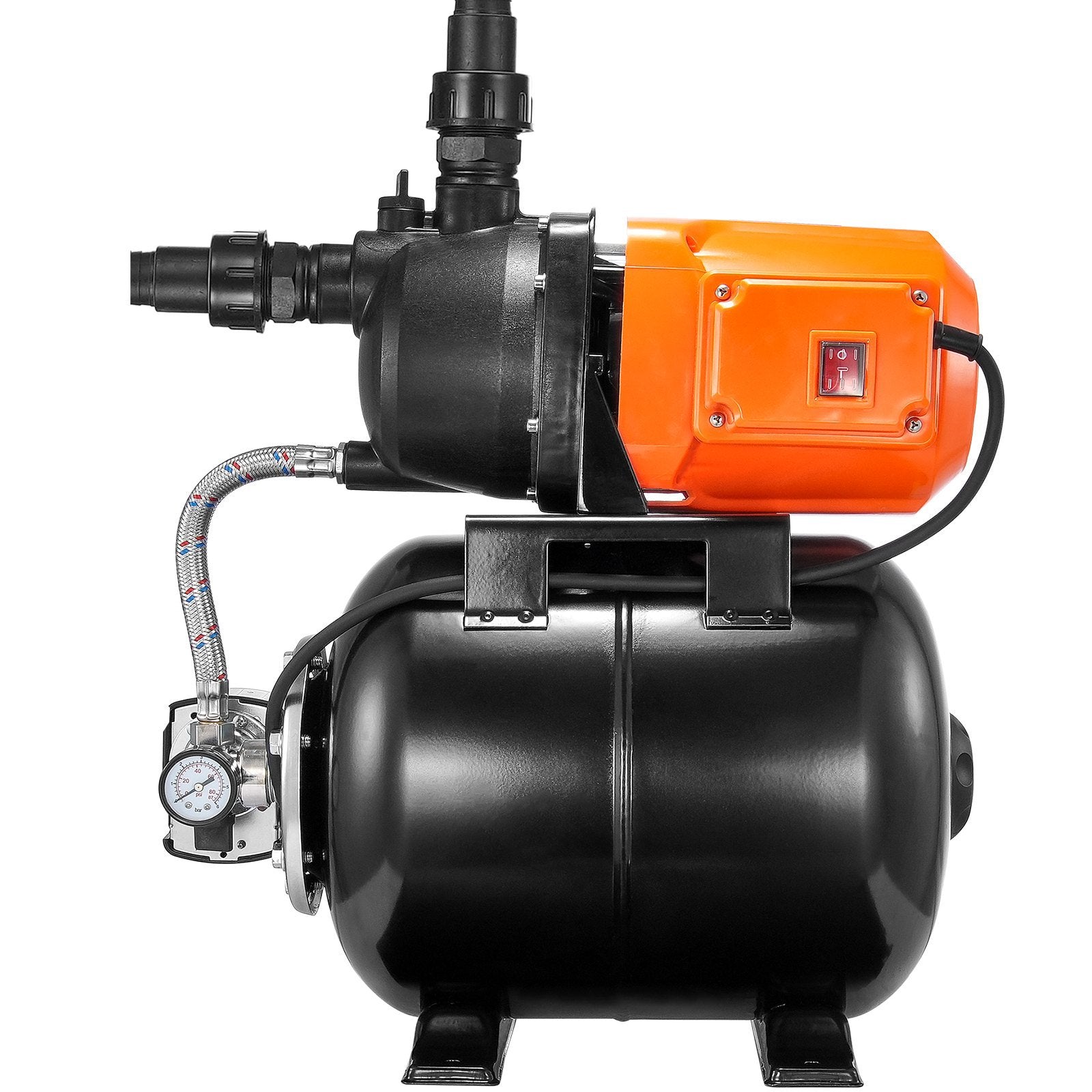

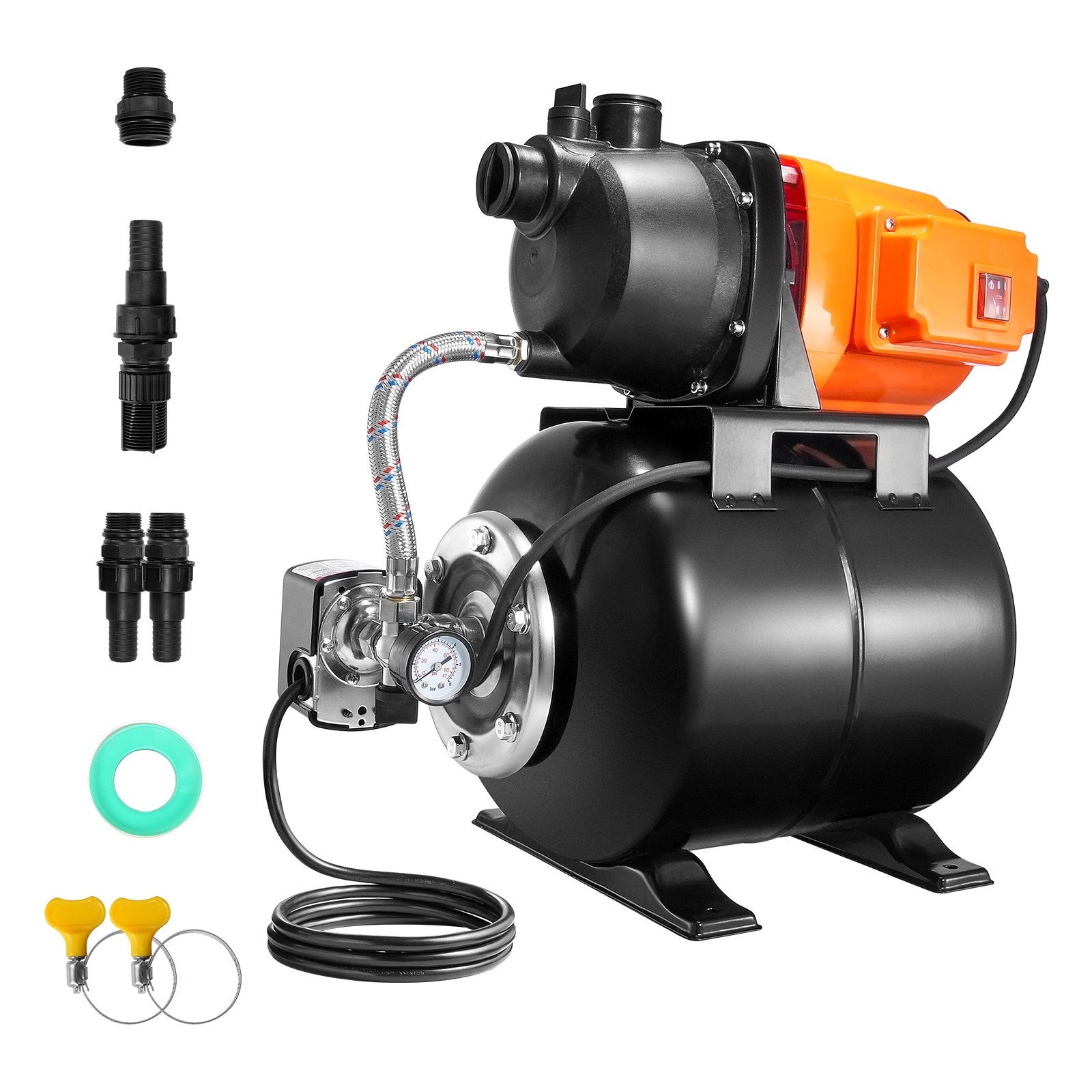

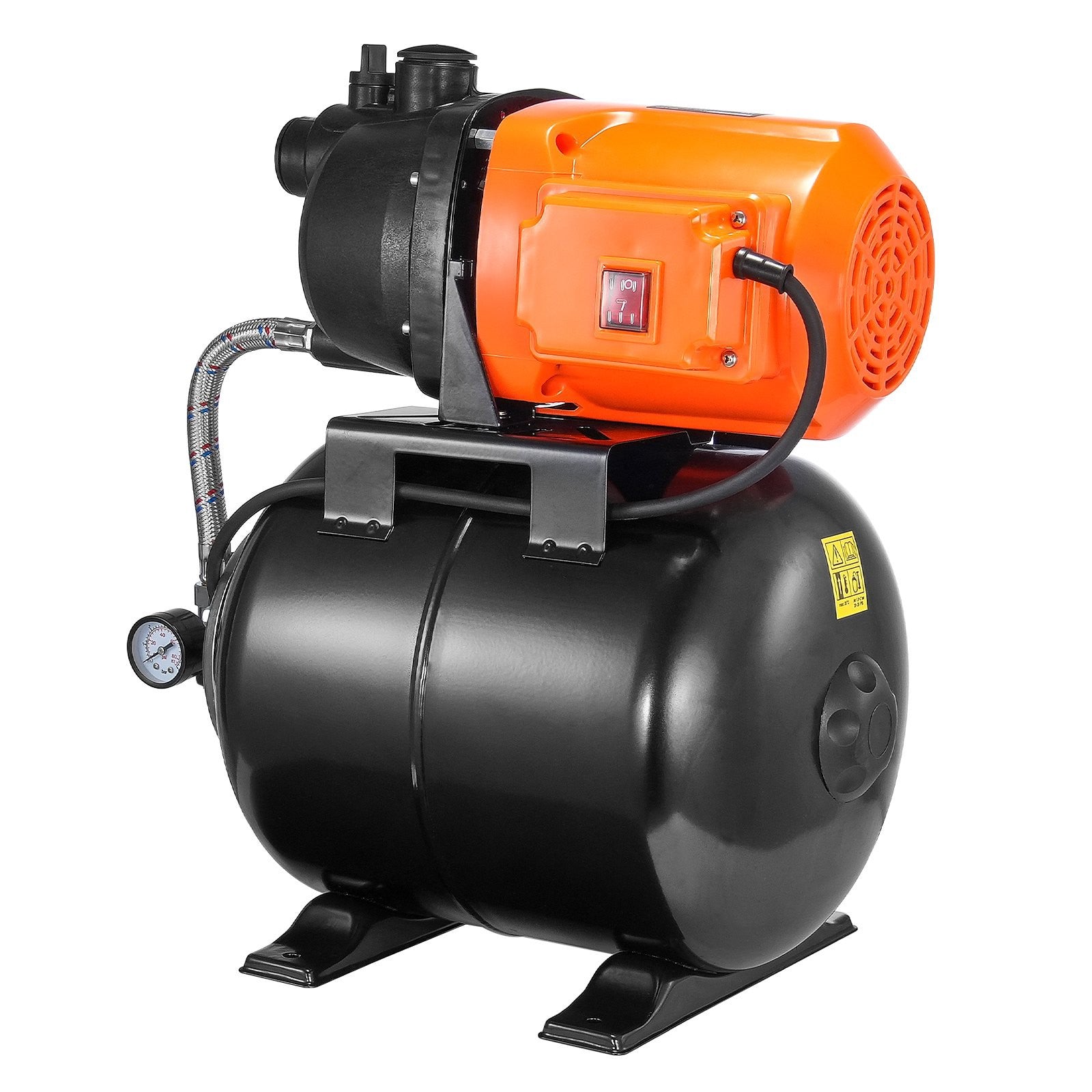

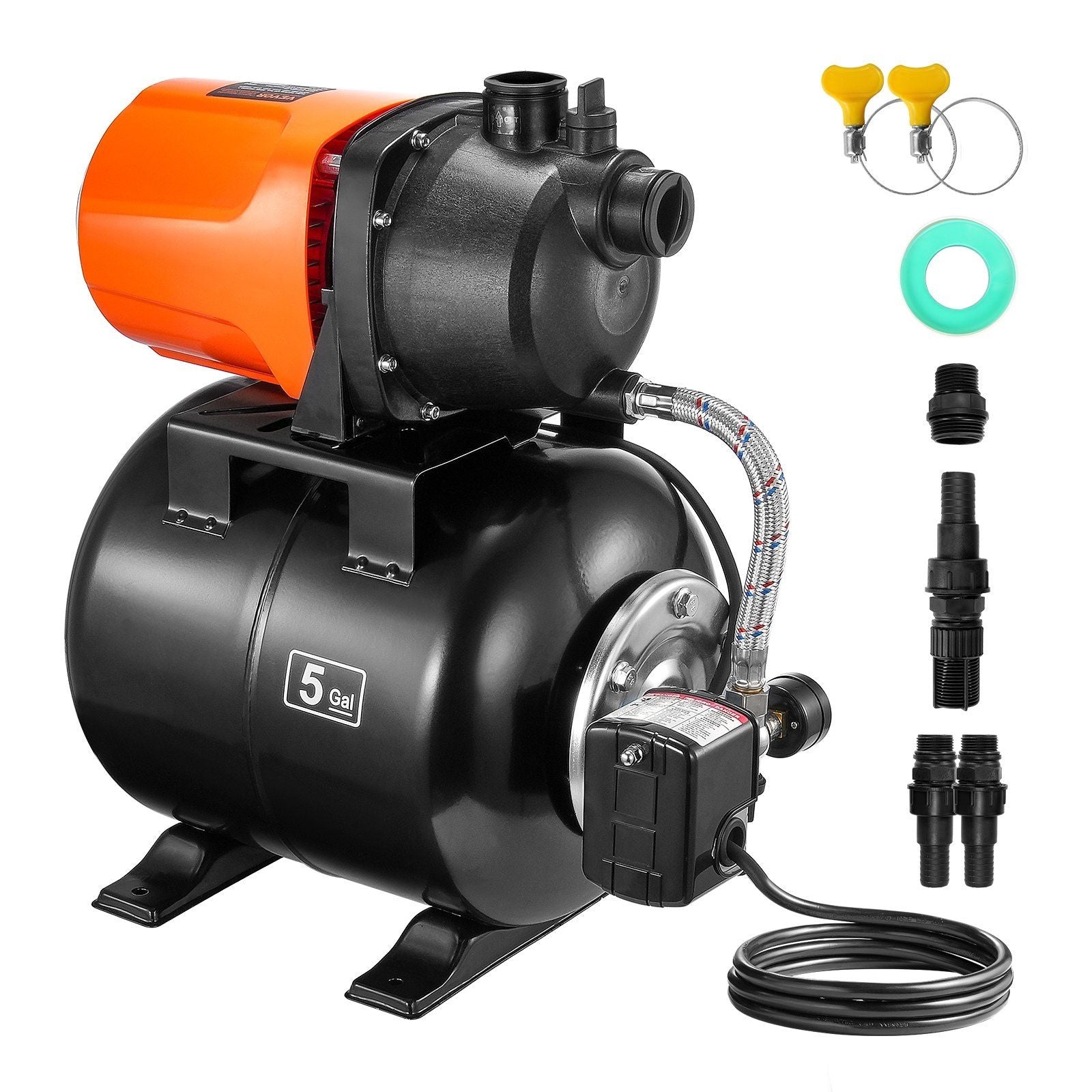

Shallow Well Pump 1 HP with Pressure Tank, 1000 GPH

Shallow well pump with pressure tank boosts water pressure for irrigation and household supply with automatic 20/40 PSI on/off control. The 1 HP (750W) motor delivers up to 1000 GPH for steady transfer to sprinklers, garden hoses, and long runs. A thermoplastic pump head supports stable performance, while the 5-gallon steel tank helps reduce cycling for smoother pressure. Built-in thermal overload protection and enhanced cooling help protect the motor during demanding use.

• Delivers up to 1000 GPH (3700 L/H) flow for irrigation, lawn sprinklers, and water transfer


• Maintains 20/40 PSI pressure switch control; starts at 20 PSI, shuts off at 40 PSI


• Reaches up to 164 ft (50 m) max head and 26.3 ft (8 m) max suction depth


• Includes a check valve to help prevent backflow and support stable pressure


• Protects with thermal overload shutdown plus fan and cooling vents for heat dissipation

Designed for home, garden, and lawn systems that need dependable pressure boosting without constant monitoring. The steel pressure tank helps reduce frequent starts, while the thermoplastic pump head is built for durability and steady operation. For first-time setup, prime the pump by filling water through the discharge port before powering on to avoid dry running. Ideal for shallow wells, cisterns, and clean water supply lines—grab yours today and get consistent pressure where you need it.

• Motor power: 1.0 HP / 750W (context rating: 745W)


• Max flow rate: 1000 GPH / 3700 L/H (63 L/min)


• Max head lift: 164 ft / 50 m


• Max suction lift: 26.3 ft / 8 m


• Pressure switch: 20–40 PSI (1.4/2.8 bar)


• Pressure tank capacity: 5 gal / 19 L (steel, coated)


• Pump head material: Thermoplastic


• Inlet/Outlet size: G1


• Net weight: 23.15 lb / 10.5 kg
