Solar Panel Mounting Brackets, 2 Sets, 45-Inch, Adjustable 0–90

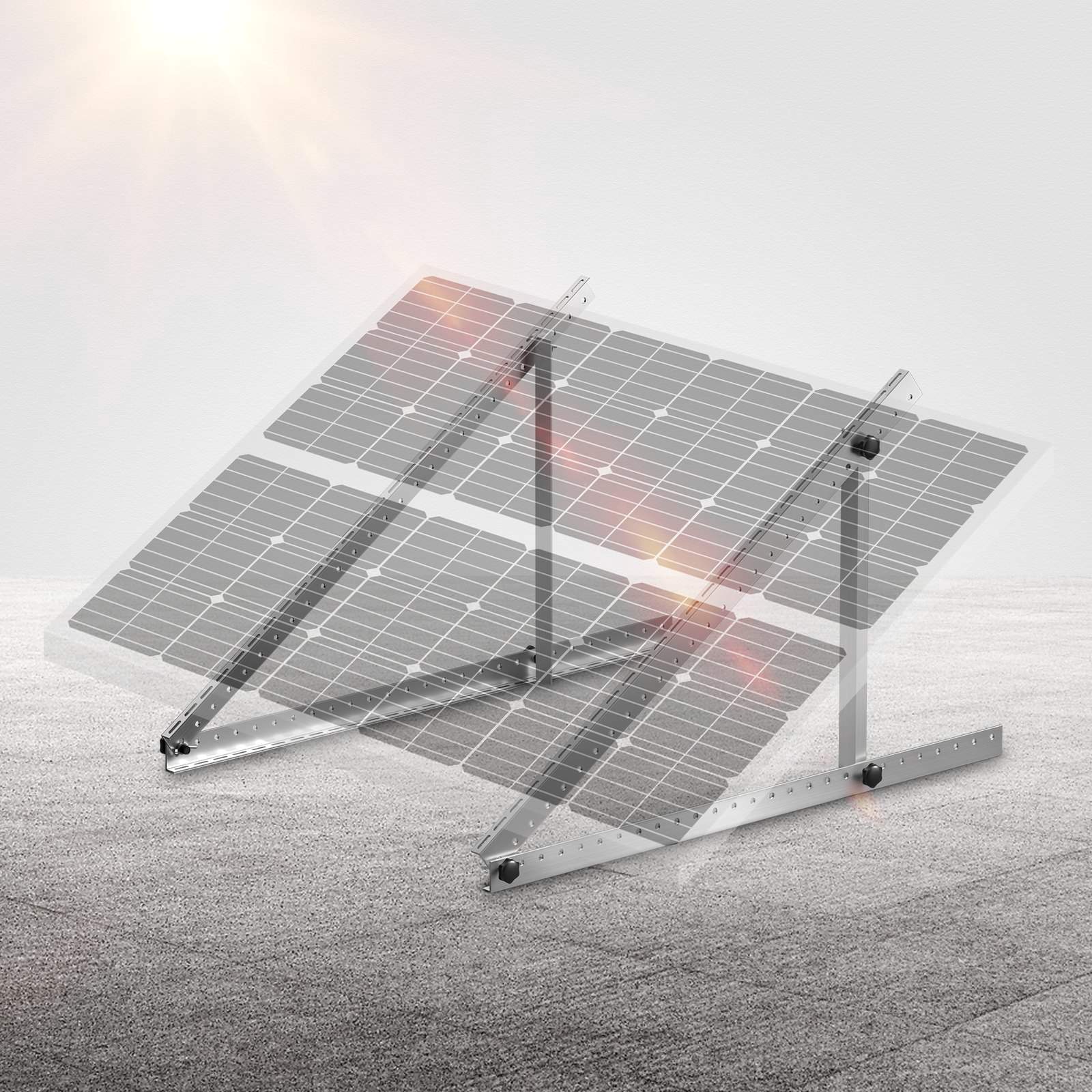

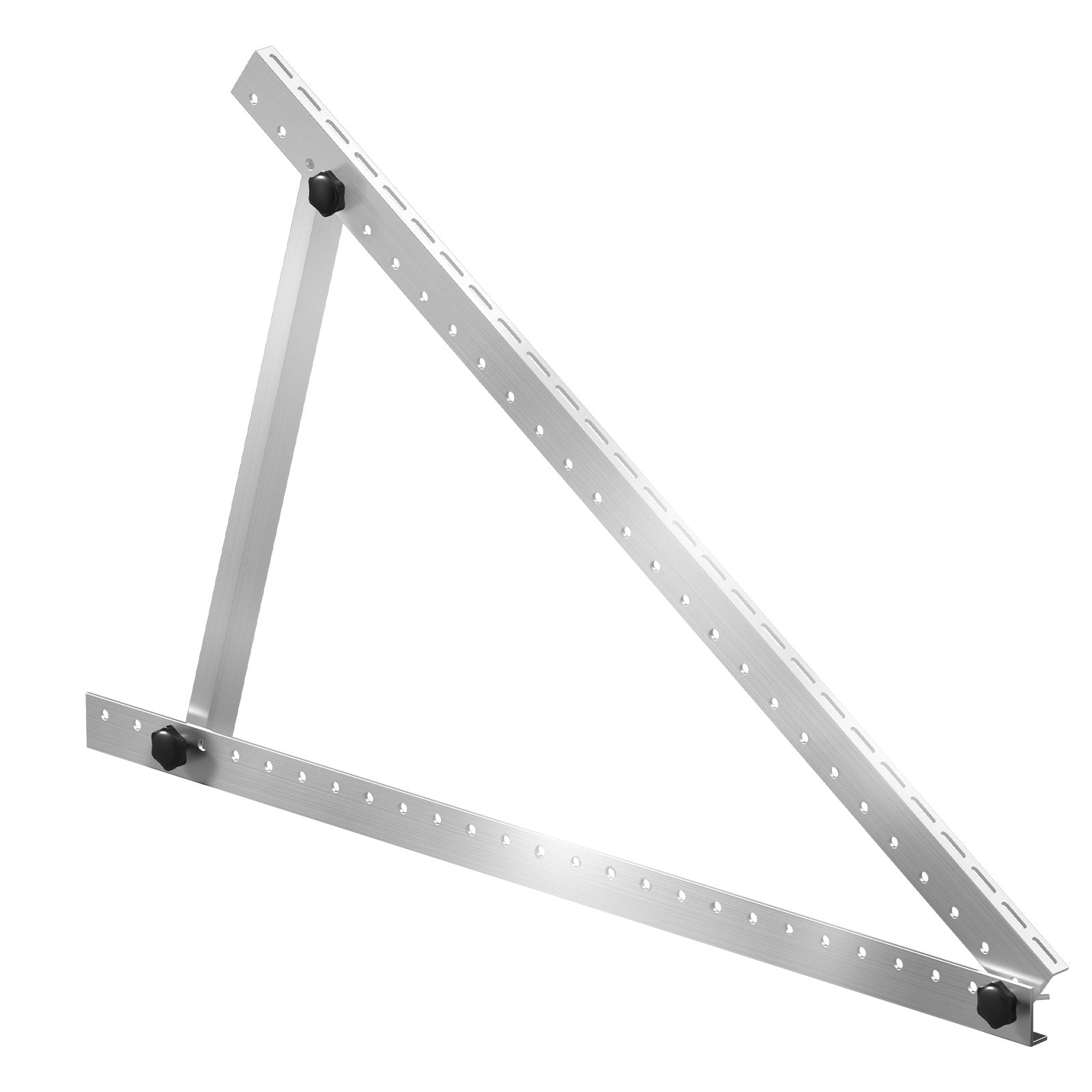

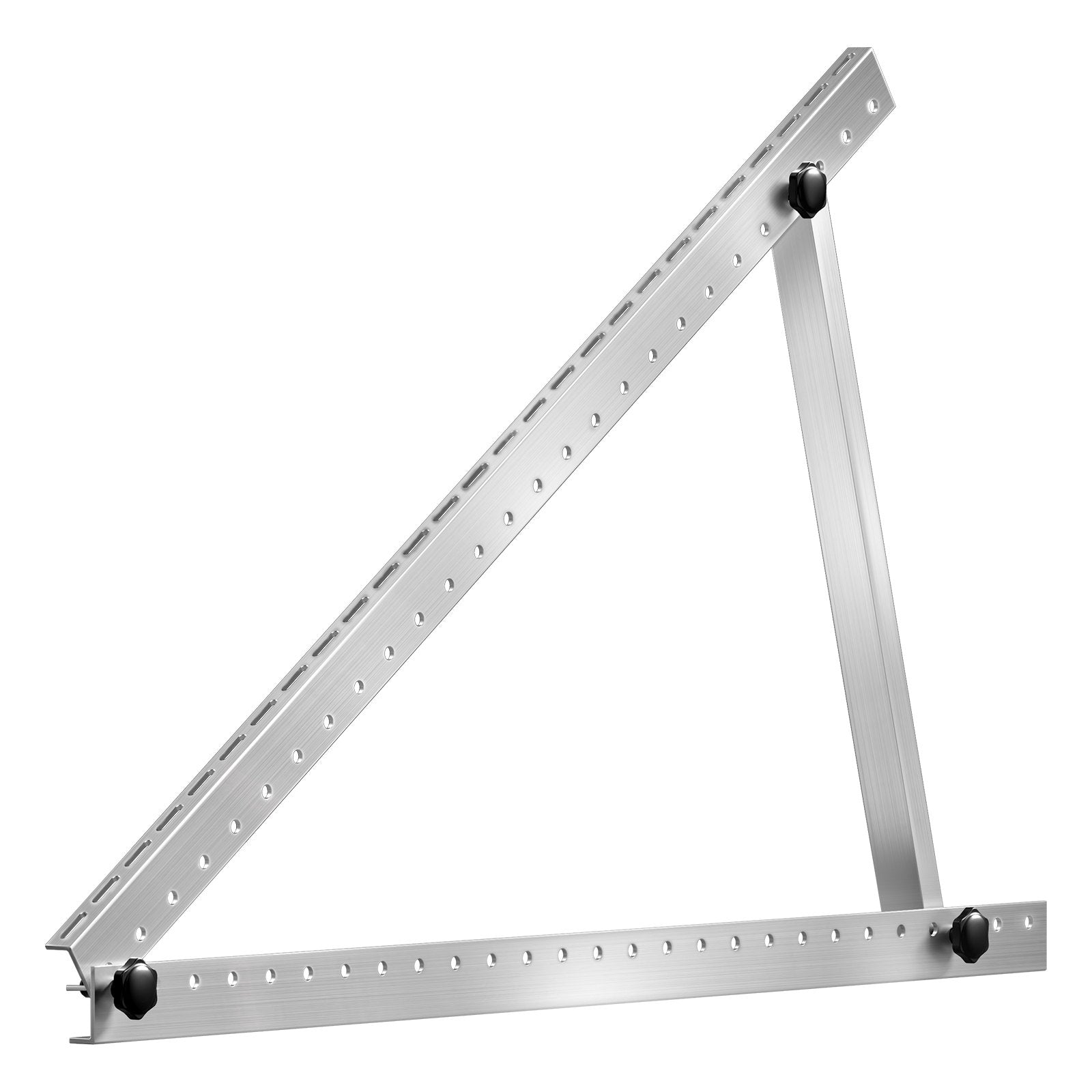

Adjustable solar panel mounting brackets help you tilt 100–400W panels from 0–90° to capture more sunlight and improve charging efficiency on RVs, boats, sheds, and off-grid setups. This 2-set, 45-inch aluminum tilt mount system combines lightweight handling with high load stability, using corrosion-resistant anodized alloy and pre-drilled holes for faster installation on flat surfaces.

• Delivers 0–90° tilt adjustment to dial in the optimal sun angle through seasons and locations


• Supports 100–400W solar panels for RV, boat, campervan, roof, wall, ground, and shed mounting


• Holds steady with up to 265 lb load capacity for dependable support in outdoor conditions


• Includes pre-drilled holes plus M8 plastic knob screws and M8 wing nuts for quick assembly


• Resists corrosion with anodized aluminum alloy for long service life in weather-exposed installs

Set your solar array once, then fine-tune the tilt anytime to match changing sun angles—without rebuilding your mount. The folding tilt legs keep the bracket system compact while still providing stable, elevated positioning for better light exposure. Whether you’re upgrading an off-grid power system, adding rooftop solar to a motorhome, or mounting panels on a boat, this adjustable tilt bracket set is built for repeat adjustments and reliable support. Grab yours today and optimize your solar panel angle in minutes.

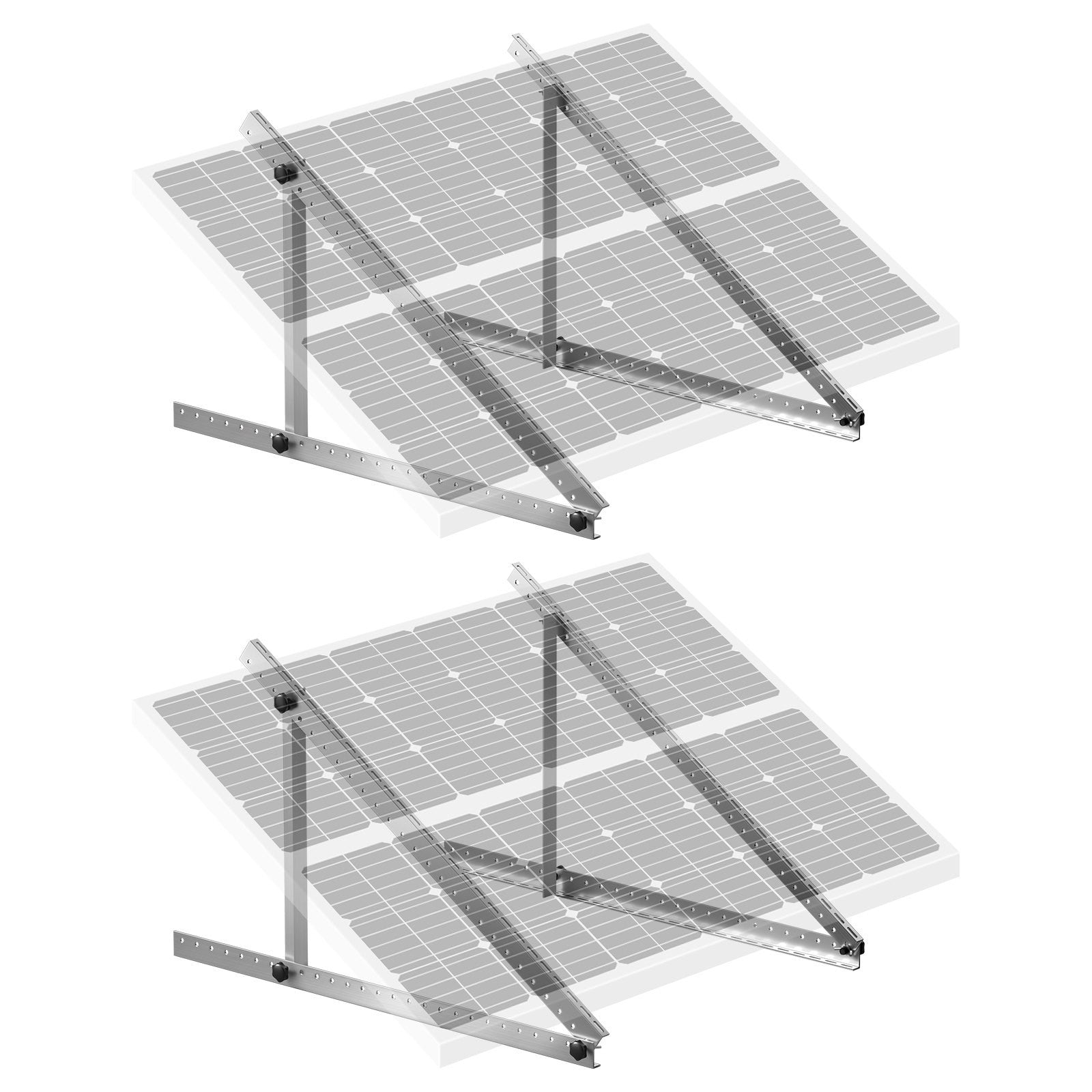

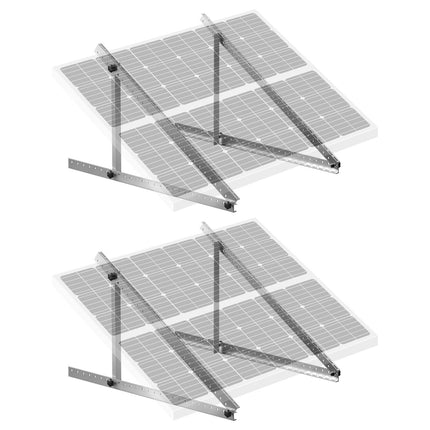

• Set size: 2 sets (tilt mounting brackets with accessories)


• Panel compatibility: 100–400W


• Adjustment range: 0–90°


• Maximum load capacity: 265 lb / 120 kg


• Dimensions: 45 x 45 x 22.6 in / 1140 x 1140 x 575 mm


• Product weight: 11.5 lb / 5.2 kg


• Material: Aluminum alloy AL6005-T5, anodized finish


• Mounting orientation: Horizontal or vertical


• Hardware: M8 plastic knob screws, M8 wing nuts
