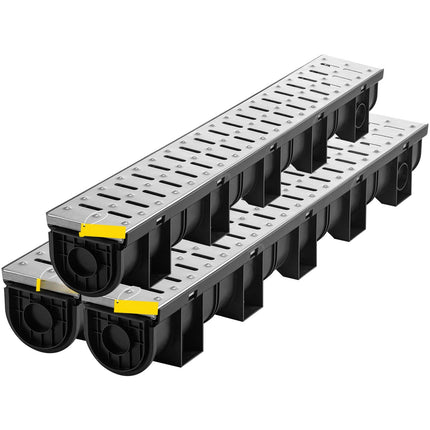

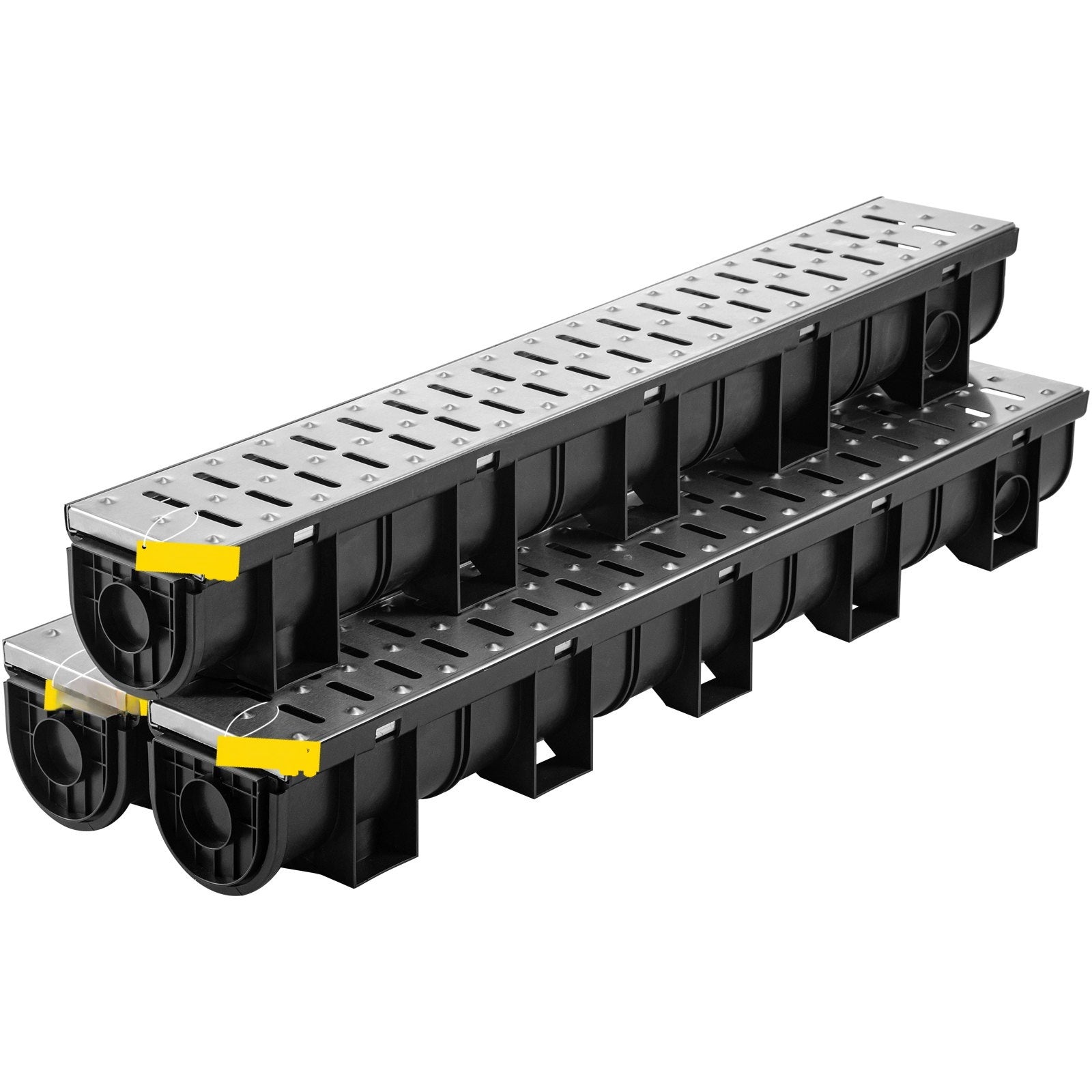

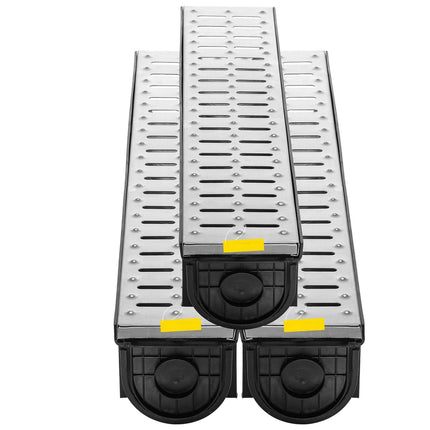

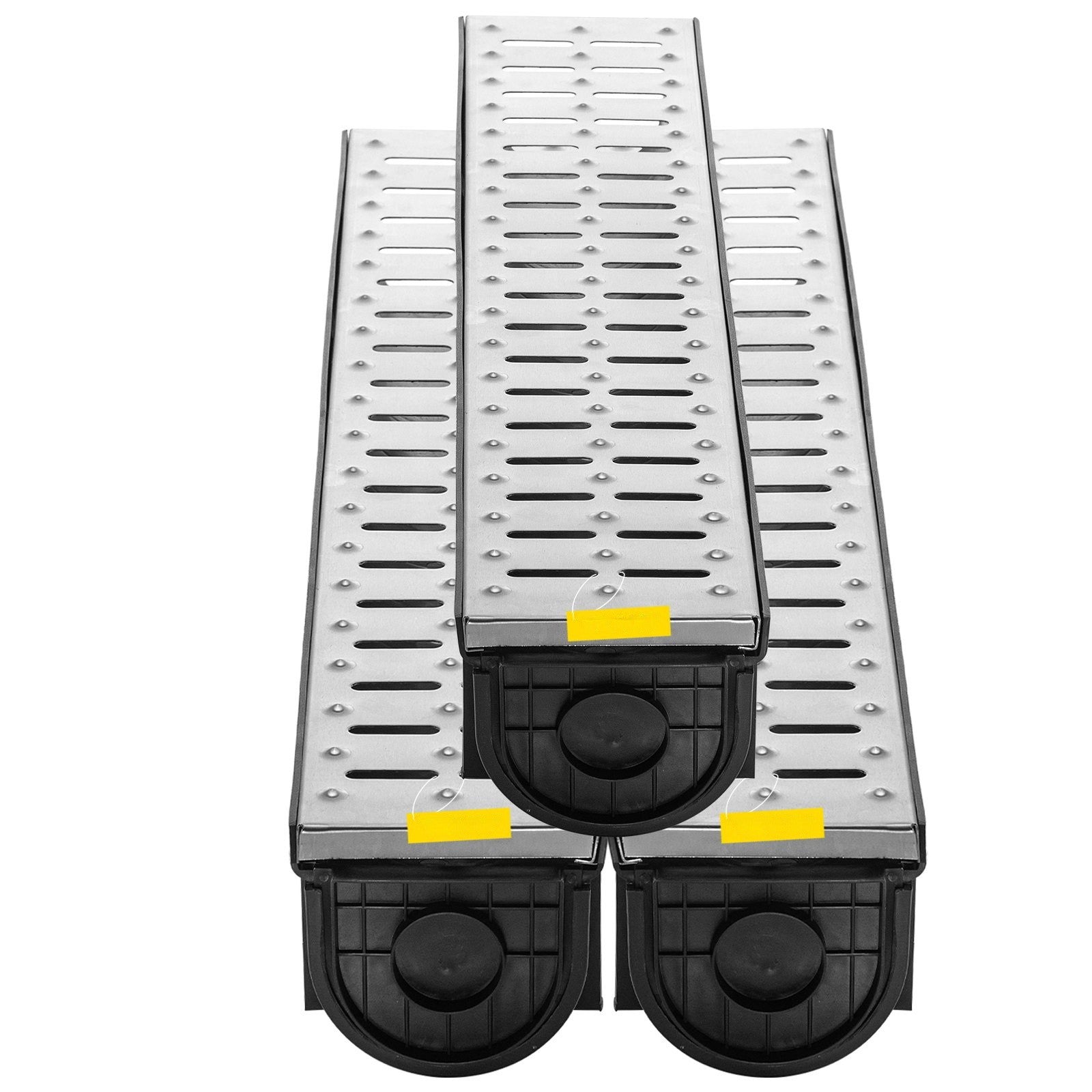

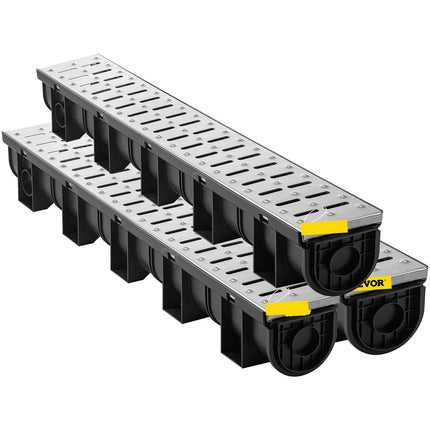

Trench Drain Kit, HDPE Channel, Stainless Grate, 3-Pack

Trench drain system channels surface runoff fast to help keep garages, driveways, patios, and garden paths drier and safer. This 3-pack channel drain kit uses a low-profile HDPE trench with a stainless steel grate for dependable drainage and quick cleanouts. Interlocking sections extend your run with tight alignment, while built-in bottom and side outlets simplify pipe hookups without extra connectors.

• Delivers rapid water capture with a smooth HDPE interior to help reduce pooling and slippery areas


• Connects securely via interlocking ends to extend length and keep channels tightly aligned


• Includes removable stainless steel grates for tool-free access when clearing leaves, silt, and debris


• Fits multiple drain options with built-in bottom outlets plus a side outlet for flexible pipe routing


• Supports light-vehicle areas with A15 load rating for home driveways and similar surfaces

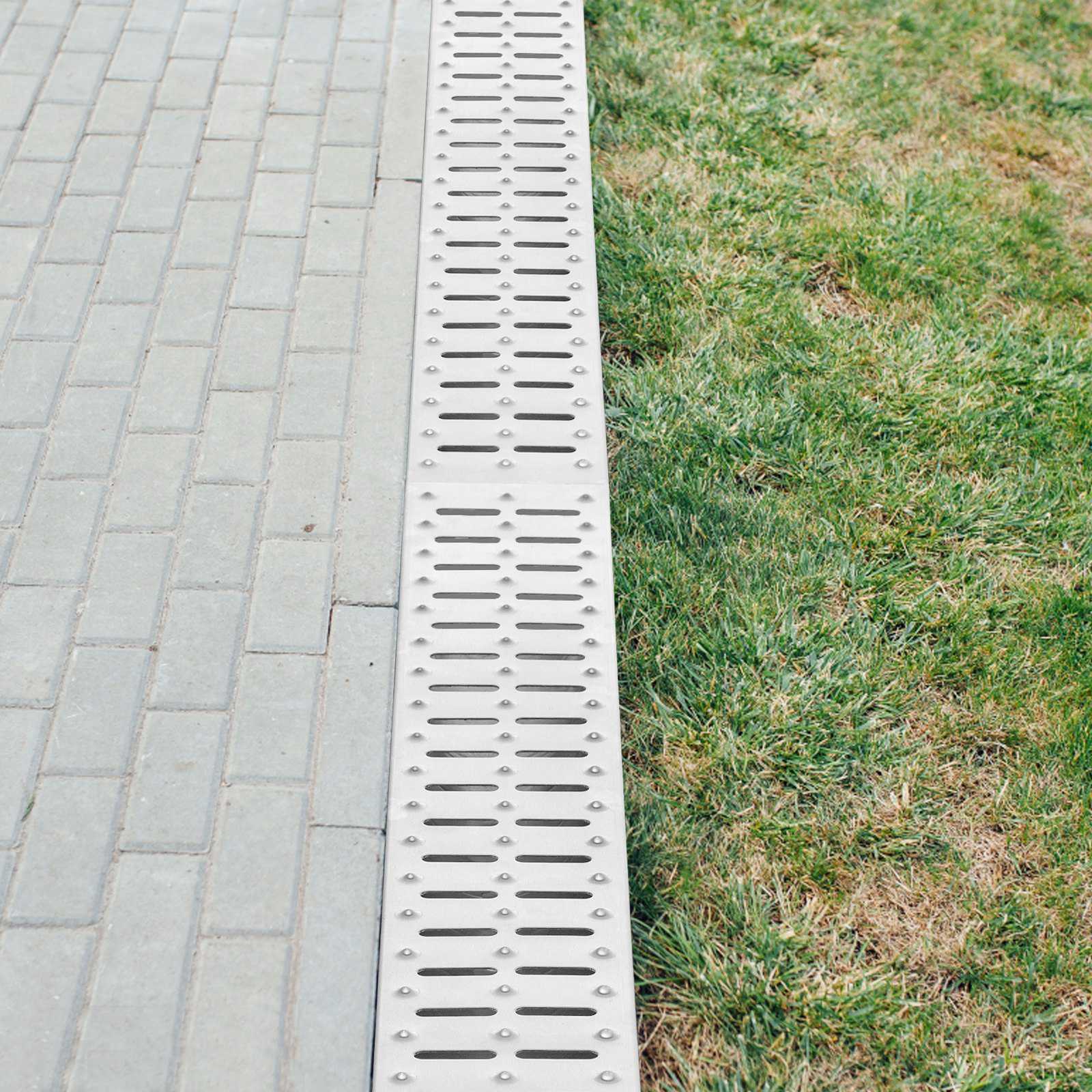

Set a clean, straight drainage line wherever water collects—along garage thresholds, pool surrounds, patio edges, or landscape transitions. The anti-flotation design helps the channel stay stable when set in concrete, and the end caps help you finish runs neatly. Choose the outlet position and size that suits your layout, then link sections to cover longer spans without complicated hardware. Grab yours today and get drainage in place before the next heavy rain.

• Pack size: 3 channels + 3 stainless steel grates + 3 end caps


• Material: HDPE trench body; stainless steel grate


• Color: Black (channel) & Silver (grate)


• External size (each): 15 x 13 x 100 cm (5.9 x 5.1 x 39.4 in)


• Internal size (each): 10 x 10 x 100 cm (3.9 x 3.9 x 39.4 in)


• Side drain hole diameter: 5.5 cm (2.2 in)


• Bottom outlet sizes: 7.9 cm (3.1 in) and 5.5 cm (2.2 in); additional option noted as 3.6 in


• Load class: A15


• Working temperature: -40°C to 120°C (-40°F to 248°F)


• Weight (each): 3.3 kg (7.3 lb)
